SKU: 90MB1LL0-M0EAY0
PRODUCT TYPE: Motherboard

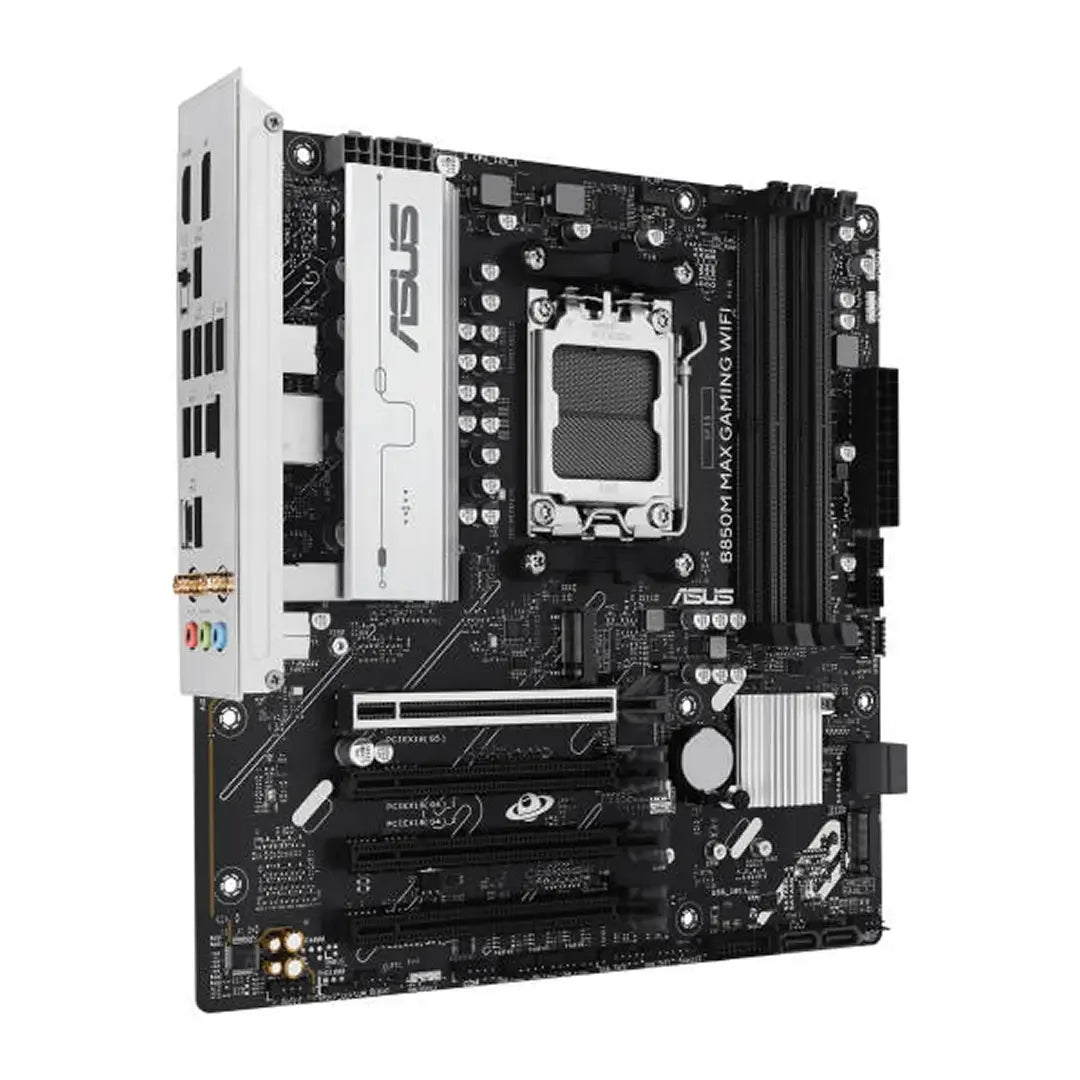

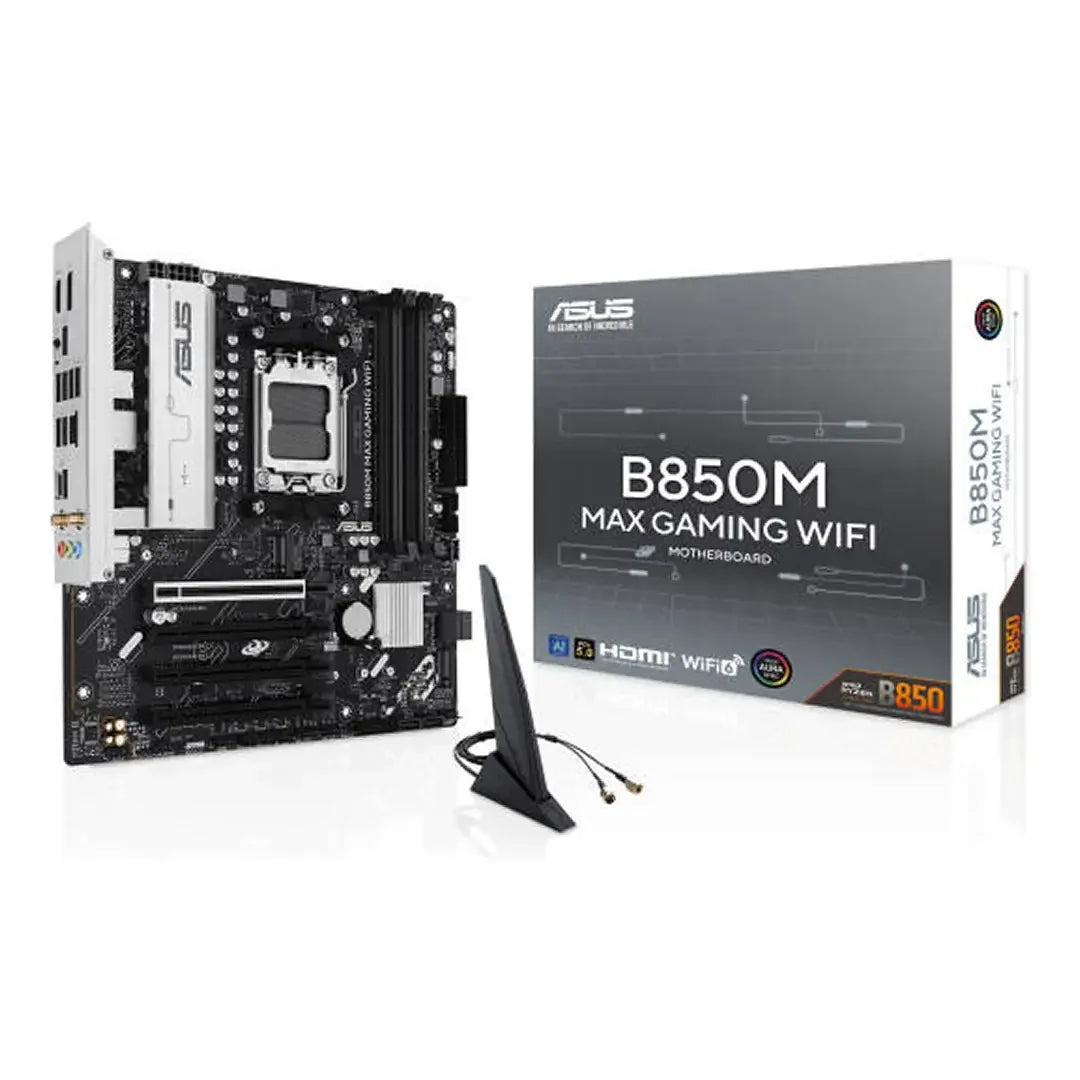

ASUS B850M MAX Gaming WiFi Motherboard, AMD B850 Chipset, AMD Micro-ATX Motherboard,DDR5, PCIe 5.0 Support, AI Ready, Black | 90MB1LL0-M0EAY
Hurry! Only 0 Left in Stock!
We are one of the highest-rated online shops in UAE
Your satisfaction is guaranteed with our 1-year warranty.
The ASUS B850M MAX GAMING WIFI is a cutting-edge micro-ATX motherboard engineered for gamers, content creators, and PC builders who demand performance and future readiness. Designed around the AMD B850 chipset and supporting AMD’s Ryzen 7000 / 8000 / 9000 processor lineups, it combines efficiency, connectivity, and AI-centric features in a compact mATX form factor.
| Form Factor | Micro-ATX (mATX) |
| CPU Socket / Chipset | Ready for the latest AMD Ryzen 7000 / 8000 / 9000 CPUs, ensuring longevity and upgrade headroom. |
| Memory Support | 4 x DIMM Slots, DDR5 and Non-ECC, Un-buffered DIMM |
| Expansion / Slots | 1 × PCIe 5.0 ×16 slot 3 × PCIe 4.0 ×16 slot (support x1 mode) |
| Storage Interfaces | 1 × M.2 (PCIe 5.0 x4) 1 × M.2 (PCIe 4.0 x4) 1 × M.2 (PCIe 4.0 x2) 4 × SATA (6 Gbps) Ports |
| Connectivity | WiFi 5 (802.11ac) + Bluetooth 5.x 1x Realtek 1 Gb Ethernet (LAN) |
| USB & I/O |

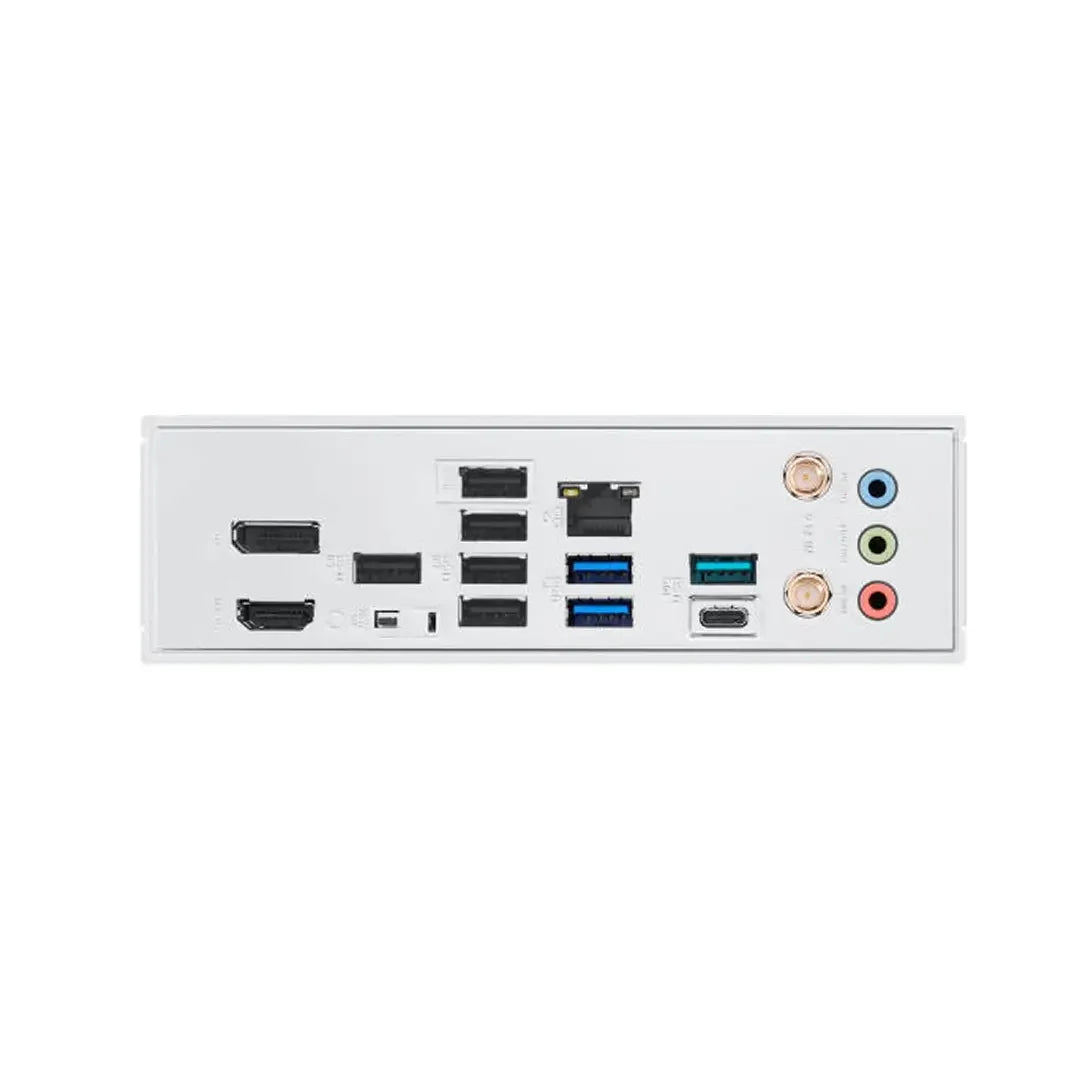

Rear I/O: 2 × M.2 (PCIe 4.0 x4), 2 × USB 5Gbps (Type-A), 5 × USB 2.0 (Type-A) Front I/O: 1 × USB 5Gbps (Type-C), 2 × USB 5Gbps headers (4 ports), 2 × USB 2.0 headers (4 ports) Back Panel I/O: 2 × USB 10Gbps, 2 × USB 5Gbps, 5 × USB 2.0, 1 × DisplayPort, 1 × HDMI, 1 × Wi-Fi module, 1 × Realtek 1Gb LAN, 3 × Audio jacks, 1 × BIOS FlashBack button Internal I/O: Cooling: 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fan, Power: 24-pin Main, 8-pin +12V, 4-pin +12V, Storage: 3 × M.2, 4 × SATA, USB: 1 × USB-C 5Gbps, 2 × USB 5Gbps headers, 2 × USB 2.0 headers, Misc: 3 × ARGB Gen 2, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF, SPI TPM, System Panel |
| Special / Reliability Features |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot, Stainless I/O) ASUS Q-Design (Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (VRM heatsink) EZ DIY (Pre-mounted I/O, BIOS FlashBack™ button/LED) Aura Sync RGB (ARGB Gen 2 headers) |
Key Features for ASUS B850M MAX Gaming WiFi Motherboard
- AEMP for enhanced DDR5 performance
- USB 10Gbps Type-C for rapid data transmission | USB 5Gbps Type-C for rapid data transmission
- WiFi 6 for stable WiFi connection and lower latency
- PCIe 5.0 slots for graphics card and storage
- Pre-mounted I/O shield for safeguarding ports and enhancing aesthetics
