SKU: ROG-STRIX-B860-G-GAMING-WIFI
PRODUCT TYPE: Motherboard
ASUS ROG STRIX B860-G GAMING WIFI Motherboard
Hurry! Only 0 Left in Stock!
We are one of the highest-rated online shops in UAE
Your satisfaction is guaranteed with our 1-year warranty.
ASUS ROG STRIX B860-G GAMING WIFI Motherboard
The ASUS ROG STRIX B860-G GAMING WIFI is a premium Micro-ATX motherboard built for Intel® Core™ Ultra Series 2 processors on the LGA1851 platform. Designed for elite gaming and advanced AI PC applications, it packs flagship-tier features into a compact form factor: a 14+1+2+1 (80A) power stage configuration, DDR5 up to 9066+ MT/s, PCIe 5.0 for both GPU and M.2 storage, Thunderbolt™ 4, WiFi 7 with AI Networking II, and ROG SupremeFX audio with Dolby Atmos support. The sleek white finish with Aura Sync RGB on the I/O shroud makes it as striking as it is capable.
Key Features
- Intel LGA1851 socket — supports Intel Core Ultra Series 2 processors
- 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages — 8-layer PCB, alloy chokes & durable capacitors
- 4× DDR5 DIMM slots — up to 9066+ MT/s (OC), dual channel, AEMP III & DIMM Fit Pro support
- 1× PCIe 5.0 x16 SafeSlot for GPU
- 4× M.2 slots — 1× PCIe 5.0 x4 + 3× PCIe 4.0 x4 — all with heatsinks
- WiFi 7 (160MHz / 6GHz / 4096 QAM) with ASUS Q-Antenna & AI Networking II
- Intel 2.5Gb Ethernet
- Thunderbolt™ 4 — up to 40 Gbps bidirectional, dual 4K display support
- ROG SupremeFX audio — ALC1220P codec + Savitech SV3H712 AMP, 120dB SNR, Dolby Atmos
- NPU Boost — one-click NPU overclock for up to 24% more AI performance
- Asynchronous Clock Generator — isolates CPU BCLK from memory, NPU & NGU for independent tuning
- BIOS FlashBack™ + Clear CMOS button
- PCIe Slot Q-Release Slim, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, Q-LED
- 3× Addressable Gen2 ARGB headers + ASUS Aura Sync
- Sleek white finish with RGB I/O shroud
- Bundled: 60-day AIDA64 Extreme subscription + 1 month Adobe Creative Cloud
Specifications
General
| Form Factor | Micro-ATX |
| CPU Socket | Intel LGA1851 |
| CPU Compatibility | Intel Core Ultra Series 2 |
| Chipset | Intel B860 |
| PCB Layers | 8-layer |
Power Design
| Power Stages | 14(80A) + 1(80A) + 2(80A) + 1(80A) DrMOS |
| CPU Power Connector | ProCool connectors |
Memory
| Slots | 4× DIMM, Dual Channel |
| Type | DDR5 |
| Max Speed | 9066+ MT/s (OC) |
| Profiles | AEMP III, DIMM Fit, DIMM Fit Pro |
Expansion Slots
| PCIe x16 | 1× PCIe 5.0 x16 (SafeSlot) |

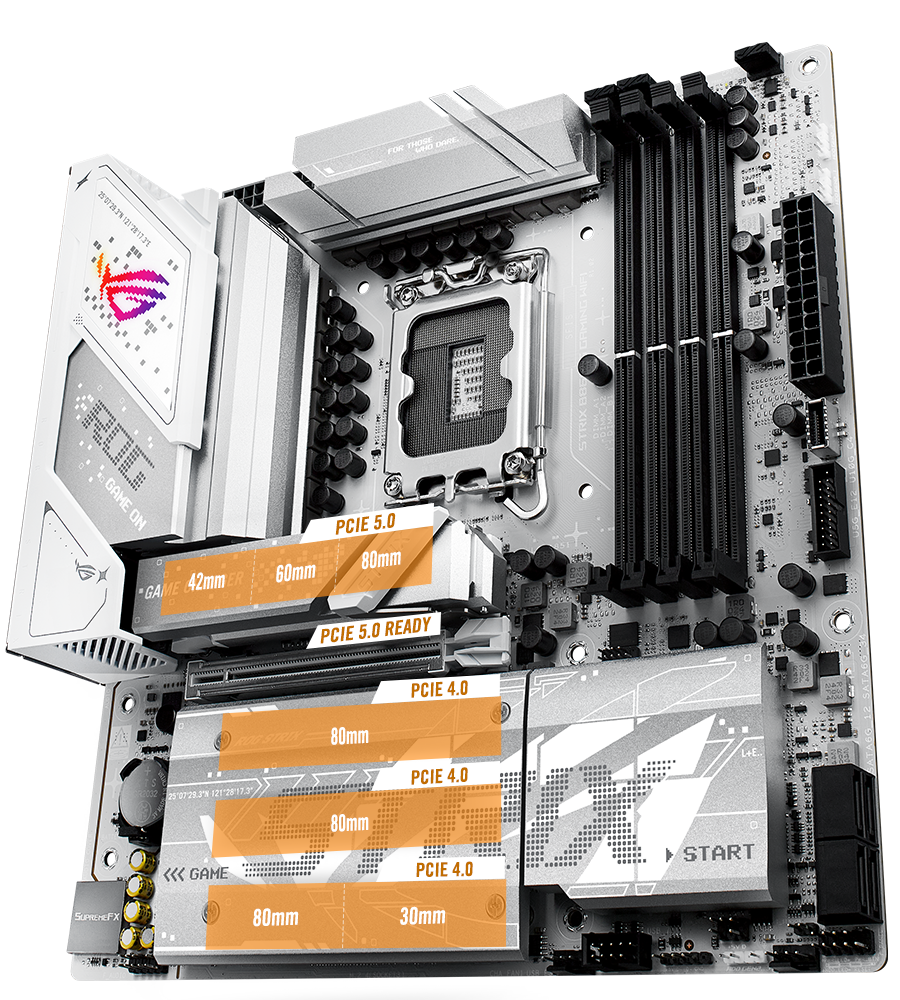

Storage
| M.2 Slot 1 | PCIe 5.0 x4, M.2 2242/2260/2280 (up to 16 GB/s) |
| M.2 Slot 2 | PCIe 4.0 x4, M.2 2280 |
| M.2 Slot 3 | PCIe 4.0 x4, M.2 2280 |
| M.2 Slot 4 | PCIe 4.0 x4, M.2 2230/2280 |
Networking
| LAN | Intel 2.5Gb Ethernet |
| WiFi | WiFi 7 — 160MHz, 6GHz, 4096 QAM, with ASUS Q-Antenna |
| Bluetooth | Bluetooth 5.4 |
| AI Networking | AI Networking II — Traffic Monitor, Fast Check, Direction Finder, GameFirst |
Audio
| Audio Codec | Realtek ALC1220P |
| Amplifier | Savitech SV3H712 |
| SNR | 120 dB stereo playback / 113 dB recording input |
| Features | SupremeFX shielding, Dolby Atmos, impedance sense, premium audio capacitors |

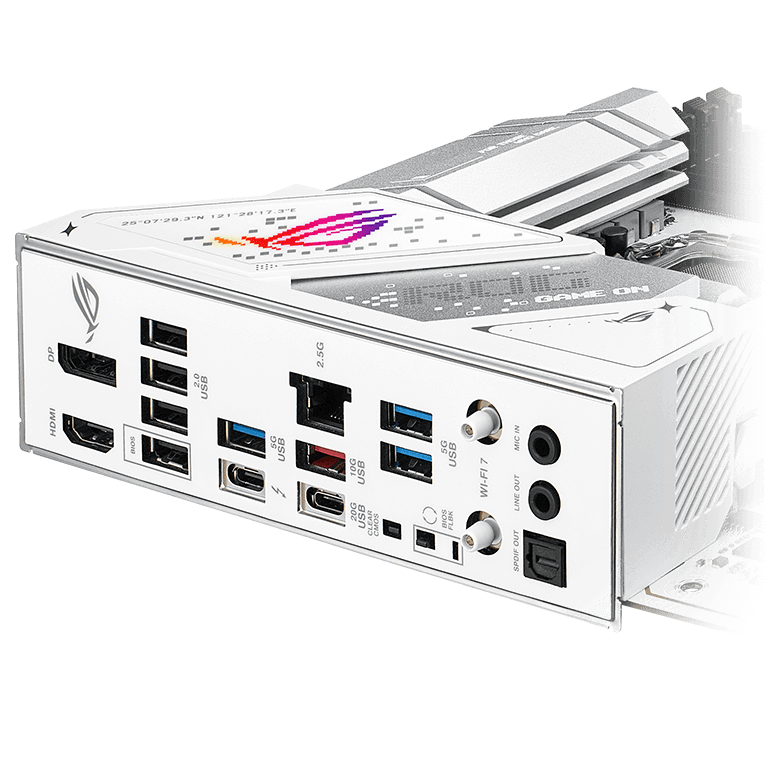

Rear I/O
| USB | 1× Thunderbolt™ 4 (40Gbps), USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps, USB 2.0 |
| Video Out | HDMI, DisplayPort |
| Other | BIOS FlashBack™ button, Clear CMOS button, 3× Audio Jacks |
RGB & Lighting
| ARGB Headers | 3× Addressable Gen2 RGB Headers |
| Sync | ASUS Aura Sync |
| Onboard Lighting | RGB I/O shroud |
Fan & Cooling Headers
| Headers | CPU Fan ×2, AIO Pump, 2× Chassis Fan — all PWM/DC auto-detect |
Software Included
- TurboV Core — in-Windows CPU overclocking, no reboot required
- Armoury Crate — Aura Sync RGB control, Fan Xpert 4
- ASUS AI Advisor — natural-language motherboard assistant
- ASUS GlideX — cross-device screen sharing
- ASUS DriverHub — one-click driver management
- HWiNFO — ROG-styled hardware monitoring
- AIDA64 Extreme — 60-day subscription
- Adobe Creative Cloud — 1 month free
