SKU: TUF-GAMING-B850M-E-WIFI
PRODUCT TYPE: Motherboard
ASUS TUF GAMING B850M-E WIFI Motherboard
Hurry! Only 0 Left in Stock!
We are one of the highest-rated online shops in UAE
Your satisfaction is guaranteed with our 1-year warranty.
ASUS TUF GAMING B850M-E WIFI Motherboard
The ASUS TUF GAMING B850M-E WIFI is a Micro-ATX motherboard built for AMD Ryzen™ processors on the AM5 platform. Engineered with military-grade components, an 8+2+1 (80A) power stage configuration, and a comprehensive cooling system, it delivers rock-solid performance for marathon gaming sessions. With PCIe 5.0 for both the GPU and M.2 storage, WiFi 6E, 2.5Gb Ethernet, and DDR5 support up to 8000+ MT/s, this board packs flagship-tier features into the Micro-ATX form factor. It also supports back-connect ATX and Micro-ATX motherboards and includes ASUS AI Cache Boost for up to 29% faster local LLM performance.
Key Features
- AMD AM5 socket — supports Ryzen 9000, 8000, and 7000 Series processors
- 8(80A) + 2(80A) + 1(80A) power stages with enlarged VRM heatsinks
- 4× DDR5 DIMM slots — up to 8000+ MT/s (OC), dual channel, AMD EXPO™ & ASUS AEMP support
- 1× PCIe 5.0 x16 SafeSlot for GPU + 1× PCIe 4.0 x1
- 3× M.2 slots (1× PCIe 5.0 x4 + 2× PCIe 4.0 x4) — all with heatsinks
- WiFi 6E with ASUS Q-Antenna for fast, snap-in wireless setup
- Realtek 2.5Gb Ethernet with TUF LANGuard (2.5× surge tolerance)
- Realtek 7.1-channel audio with DTS Audio Processing & dedicated PCB layers
- Rear USB 10Gbps Type-C® + Front USB 5Gbps Type-C® header
- BIOS FlashBack™ — update BIOS without CPU or RAM installed
- PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Q-Antenna, Q-Dashboard
- 3× Addressable Gen2 ARGB headers + ASUS Aura Sync
- AI Cache Boost — up to 29% faster local LLM performance with Ryzen 9000
- Military-grade TUF components: TUF chokes, 5K black metallic capacitors, 8-layer PCB
- Stainless steel I/O panel — 72-hour salt fog tested, 3× longer lifespan
- Pre-mounted I/O shield
Specifications
General
| Form Factor | Micro-ATX |
| CPU Socket | AMD AM5 |
| CPU Compatibility | AMD Ryzen 9000, 8000, 7000 Series |
| Chipset | AMD B850 |
Power Design
| Power Stages | 8(80A) + 2(80A) + 1(80A) DrMOS |
| CPU Power Connector | 1× 8-pin + 1× 4-pin (ProCool) |
| PCB Layers | 8-layer |
Memory
| Slots | 4× DIMM, Dual Channel |
| Type | DDR5 |
| Max Speed | 8000+ MT/s (OC) |
| Profiles | AMD EXPO™, ASUS AEMP |
Expansion Slots
| PCIe x16 | 1× PCIe 5.0 x16 (SafeSlot) |
| PCIe x1 | 1× PCIe 4.0 x1 |
Storage
| M.2 Slot 1 | PCIe 5.0 x4, M.2 2280 (up to 128 Gbps) |
| M.2 Slot 2 | PCIe 4.0 x4, M.2 2280 |
| M.2 Slot 3 | PCIe 4.0 x4, M.2 2242/2260/2280 |
| SATA | 4× SATA 6Gb/s |
Networking
| LAN | Realtek 2.5Gb Ethernet (TUF LANGuard protected) |
| WiFi | WiFi 6E with ASUS Q-Antenna |
| Bluetooth | Bluetooth 5.3 |
Audio
| Audio Codec | Realtek 7.1-channel (98dB SNR) |
| Features | DTS Audio Processing, Audio Shielding, Dedicated PCB Layers, Premium Capacitors |

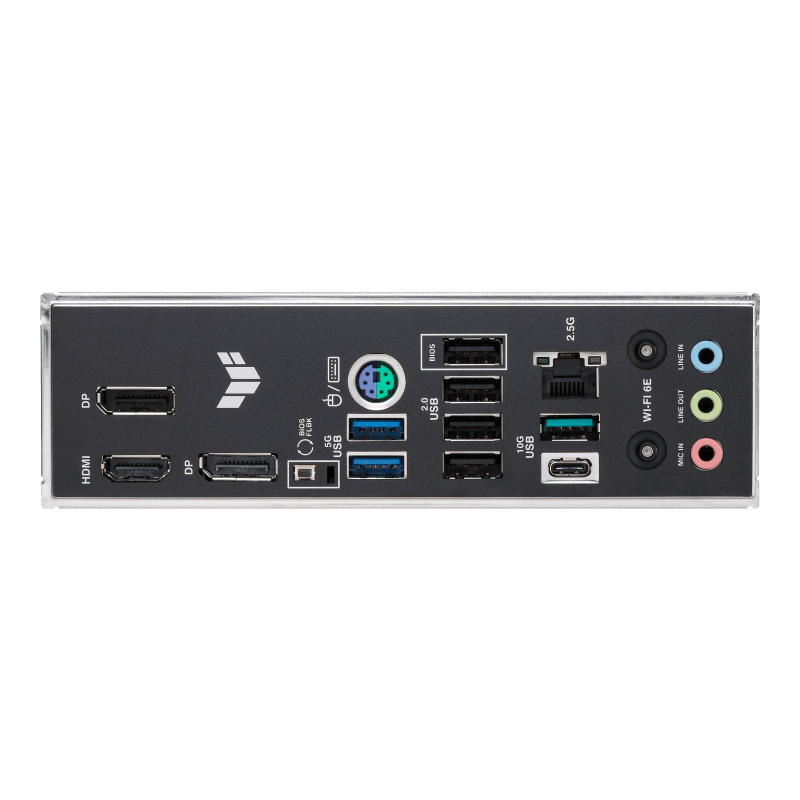

Rear I/O
| Video Out | 1× HDMI, 1× DisplayPort |
| USB | 1× USB 10Gbps Type-C®, 1× USB 10Gbps Type-A, 2× USB 5Gbps Type-A, 4× USB 2.0 |
| Other | 1× PS/2 combo, 3× Audio Jacks, BIOS FlashBack™ button |
Front Panel Headers
| USB | 1× USB 5Gbps Type-C®, 1× USB 5Gbps Type-A, 2× USB 2.0 headers |
Fan & Cooling Headers
| Headers | CPU Fan, CPU OPT, AIO Pump, Water Pump+, 2× Chassis Fan |
RGB & Lighting
| ARGB Headers | 3× Addressable Gen2 RGB Headers |
| Sync | ASUS Aura Sync |
