Fanatec ClubSport Handbrake V2

Sideways fun

Ideal for rally and drifting, the all-new ClubSport Handbrake V2 is a huge step forward in performance and durability with stronger components and improved electronics. ClubSport USB Adapter included.

All-new design

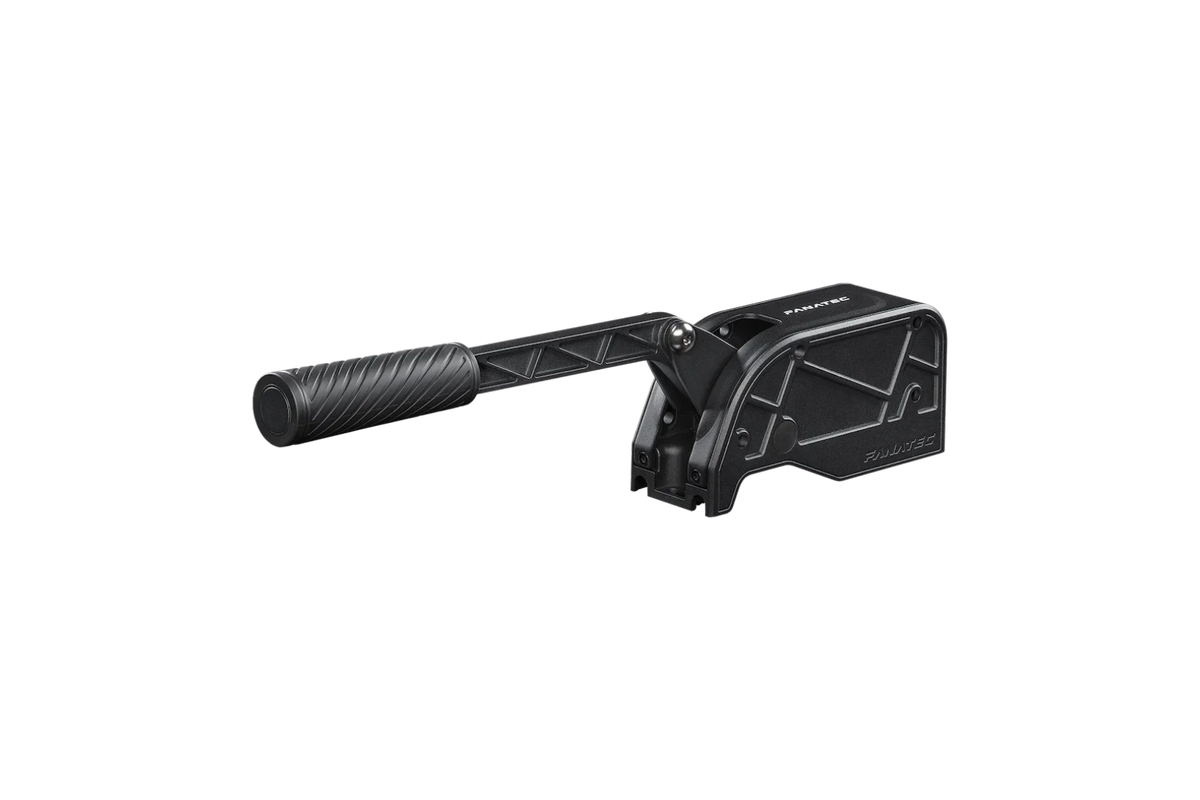

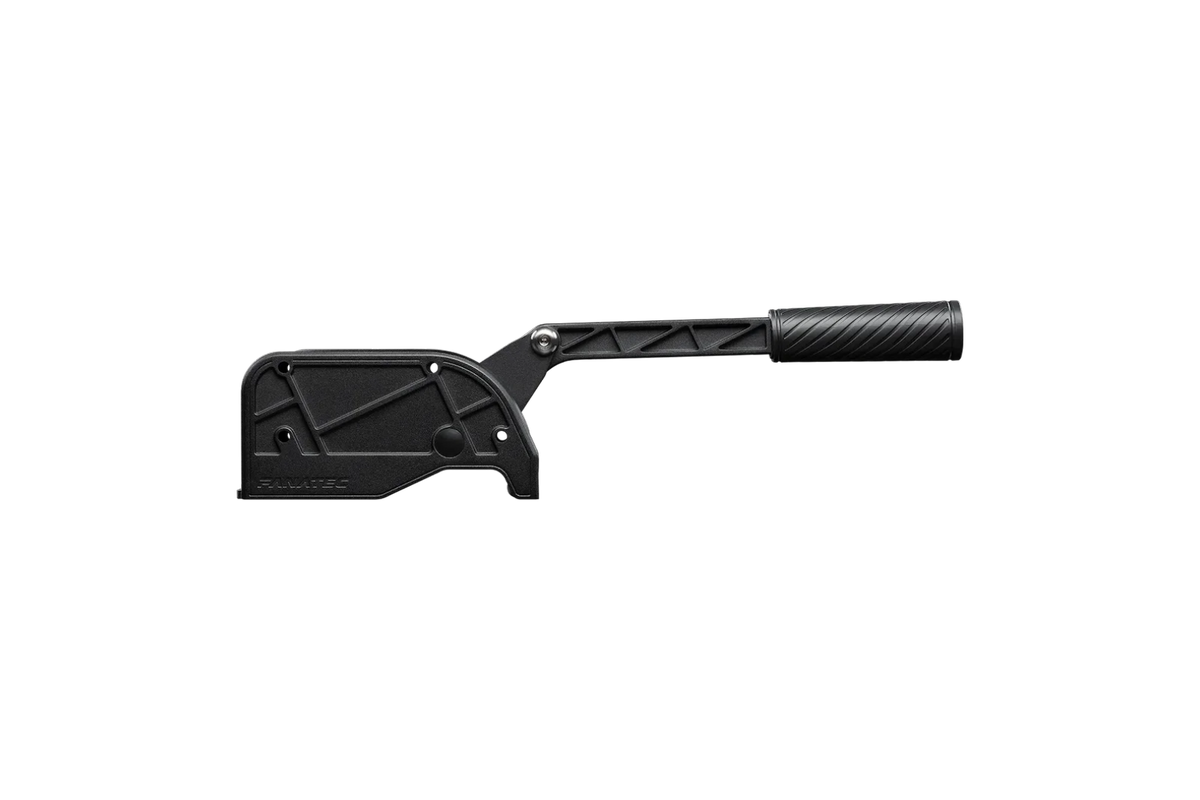

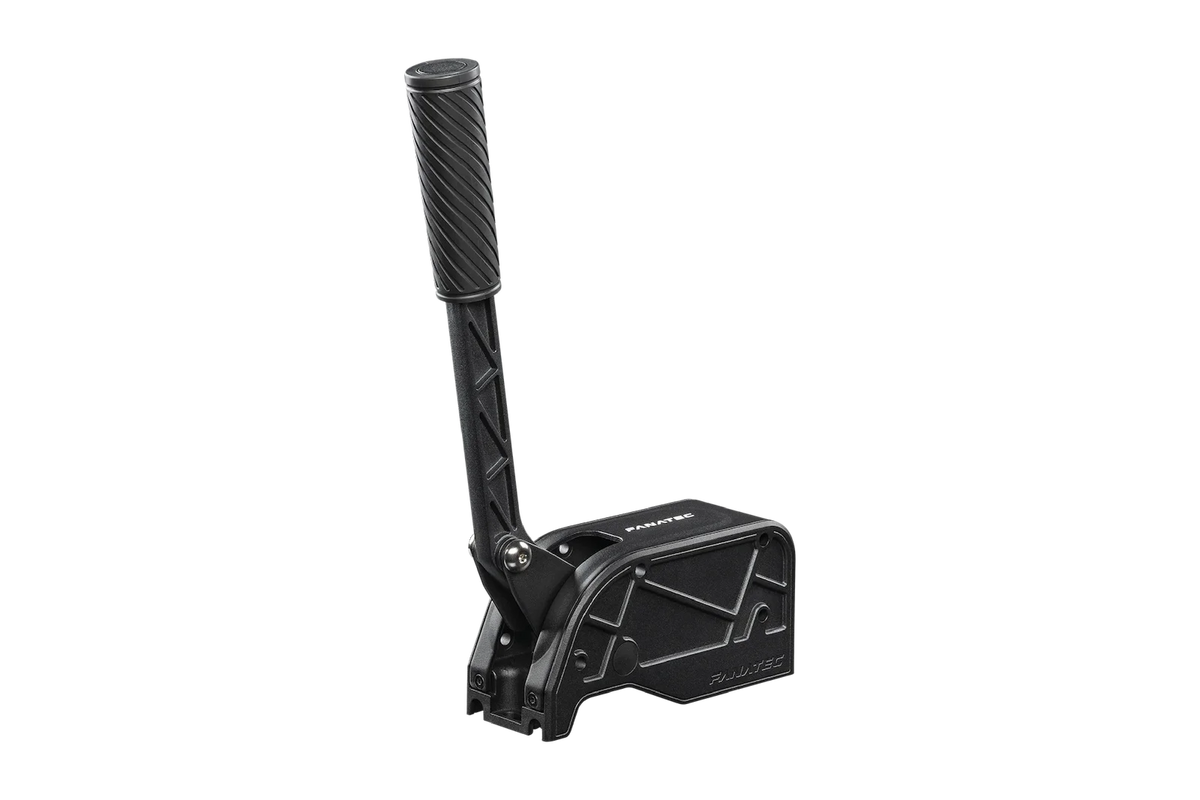

The cast and CNC-finished metal construction has been totally redesigned to be stronger and more robust. Ball bearings on the pivot point create a smooth and consistent feel.

Smooth analogue input

Equipped with a precision load cell sensor, the ClubSport Handbrake V2 delivers smooth, consistent analogue input. Connect to a Fanatec Base with RJ12, or the included USB Adapter to use as a standalone USB device on PC.

Plenty of adjustment

The ClubSport Handbrake V2 offers much more adjustability than its predecessor, meaning you can set the preload, angle, and travel to suit your driving style.

Adjustable preload

Simply open the casing for quick access to the preload adjustment disc. By adding more preload, you create more tension on the elastomer and load cell stack, increasing the initial resistance on the lever.

Adjustable angle and travel

Three mounting positions on the lever allow for large angle changes, along with a rear bolt assembly for fine-tuning. The hand-removable spacer can be placed in two orientations, allowing a quick change between three travel settings.

Mounting options

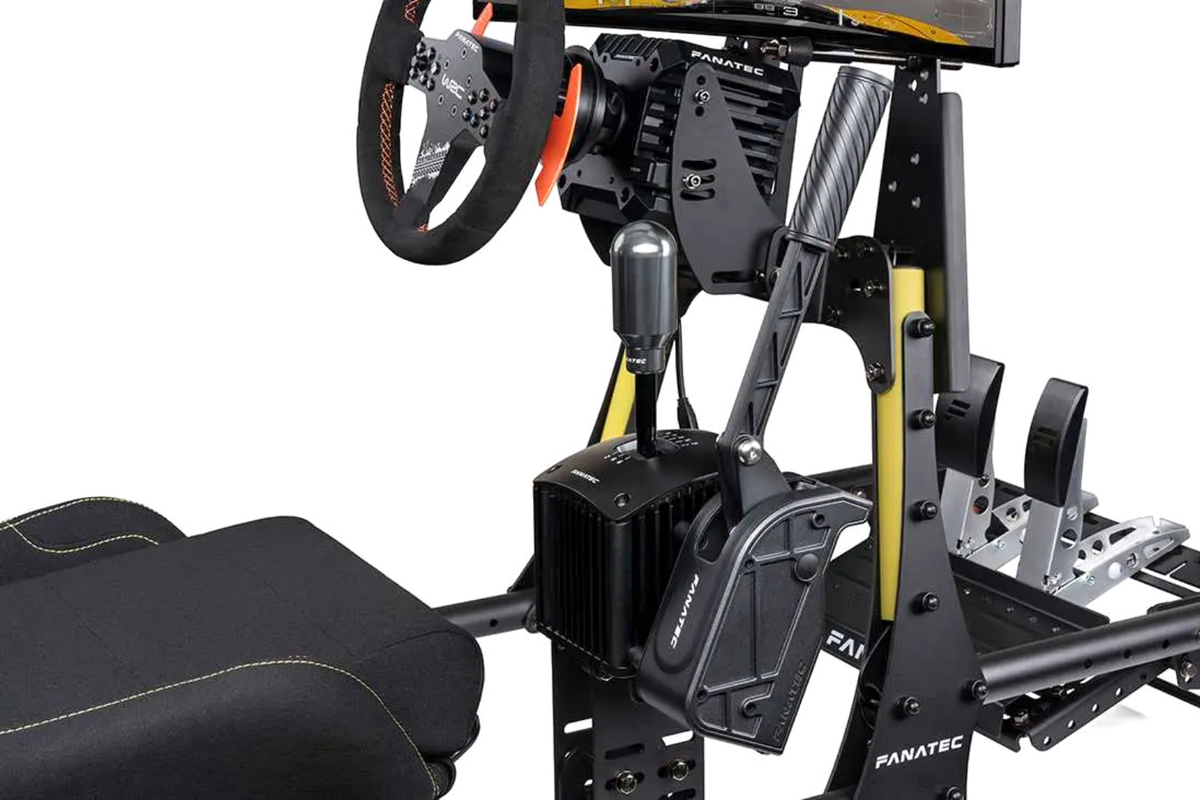

Hard-mount the ClubSport Handbrake V2 to a rig with various mounting holes, or to the side of a ClubSport Shifter (sold separately).

Side-mount

The ClubSport Handbrake V2 is designed to mount to the side of a ClubSport Shifter (sold separately) with the included spacer.

Angle mount

Mounting slots instead of holes allows the handbrake to be angled slightly towards the driver, which can be more comfortable.

Compatibility

Wheel Bases

This product is compatible with the following Wheel Bases:

• CSL Elite Wheel Base*
• CSL Elite Wheel Base V1.1*
• CSL Elite Wheel Base + - officially licensed for PS4™*
• CSL DD
• Gran Turismo DD Pro Wheel Base
• ClubSport Wheel Base V2*
• ClubSport Wheel Base V2.5*
• ClubSport DD
• ClubSport DD+
• PODIUM Wheel Base DD1
• PODIUM Wheel Base DD1 PS4™
• PODIUM Wheel Base DD2

*The analogue signal is not optimised for belt-driven Wheel Bases at this time (it is functional, but the 'max' output does not calibrate as intended). This will be improved in a future firmware update.

Pedals

It is also possible to connect this product to the Handbrake port on the following pedals:

• CSL Elite Pedals Load Cell Kit
• CSL Elite Pedals V2
• ClubSport Pedals V3
• ClubSport Pedals V3 inverted

Platforms

PC: Compatible with Windows PC when connected to a supported Fanatec Wheel Base or Pedals. Also usable as a standalone USB device using the ClubSport USB Adapter (sold separately). Functionality is game-dependent.

Xbox: Compatible with Xbox One and Xbox Series X|S consoles when connected to a supported Fanatec Wheel Base + Xbox licensed Fanatec Steering Wheel. Functionality is game-dependent.

PlayStation: Compatible with PlayStation 4 and PlayStation 5 consoles when connected to a supported PlayStation-licensed Fanatec Wheel Base. Functionality is game-dependent.
