SKU: Z790M-AORUS-ELITE
PRODUCT TYPE: Motherboards

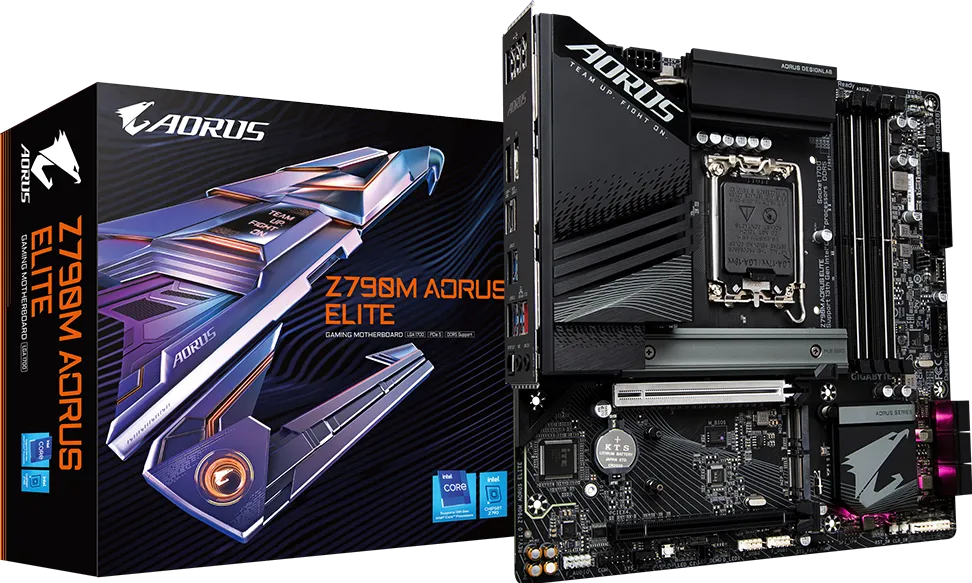

GIGABYTE Z790M AORUS ELITE Micro ATX Motherboard
Hurry! Only 1 Left in Stock!
Shipping within 1 working day in UAE
We are one of the highest-rated online shops in UAE
Your satisfaction is guaranteed with our 1-year warranty.

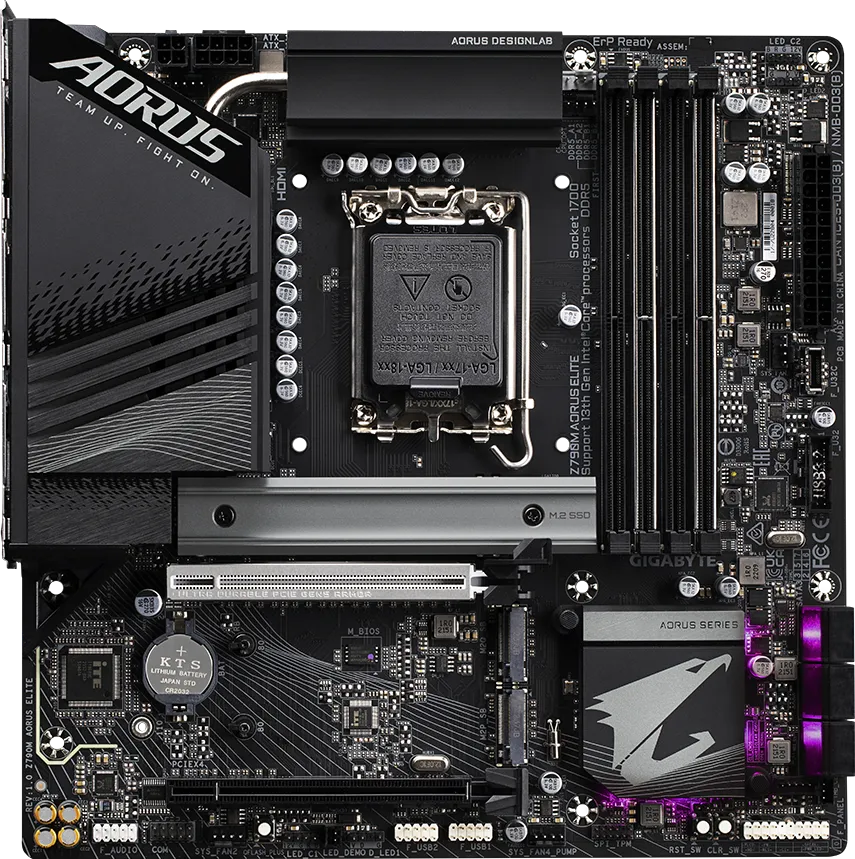

The GIGABYTE Z790M AORUS ELITE is a Micro ATX motherboard built on the Intel Z790 Express chipset, supporting 12th, 13th, and 14th Gen Intel Core processors in the LGA1700 socket. It features DDR5 memory support up to 7600 MHz (OC) across four DIMM slots for up to 256 GB, PCIe 5.0 x16 for graphics, three M.2 connectors with PCIe 4.0, six SATA 6 Gb/s ports, and Realtek 2.5 GbE LAN. With ARGB and RGB headers, comprehensive fan and pump controls, Q-Flash Plus for easy BIOS updates, and a compact 244 × 244 mm footprint, it delivers a full-featured Z790 platform in a Micro ATX form factor.
| Specification | Details |
|---|---|
| Socket | LGA1700 |
| Chipset | Intel Z790 Express |
| CPU Support | 12th, 13th & 14th Gen Intel Core / Pentium Gold / Celeron |
| Memory | 4x DDR5 DIMM, up to 256 GB, DDR5-7600(OC) |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 |
| M.2 Slots | 3x M.2 (PCIe 4.0 x4) |
| SATA Ports | 6x SATA 6 Gb/s |
| LAN | Realtek 2.5 GbE |
| Audio | Realtek ALC1200, 7.1-channel HD Audio |
| Rear USB | 1x USB 3.2 Gen 2x2 Type-C, 1x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 4x USB 2.0 |
| Display Output | 1x HDMI 2.1, 1x DisplayPort 1.2 |
| Form Factor | Micro ATX (244 × 244 mm) |
