رمز المنتج: 90MB1LL0-M0EAY0
نوع المنتج: Motherboards

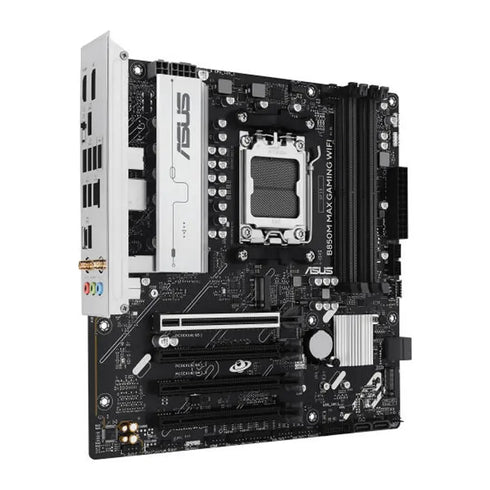

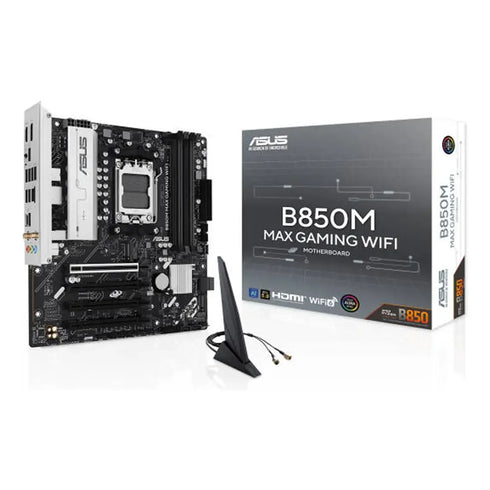

ASUS B850M MAX Gaming WiFi Motherboard, AMD B850 Chipset, AMD Micro-ATX Motherboard,DDR5, PCIe 5.0 Support, AI Ready, Black | 90MB1LL0-M0EAY
بسرعة! فقط 0 متوفر الآن!
Shipping within 4 to 5 working days in UAE
انيجما تعد واحد من افضل المتاجر الاونلاين فى الامارات
رضاء العميل هو هدفنا لذلك فكل القطع شاملة سنة ضمان محلى
The ASUS B850M MAX GAMING WIFI is a cutting-edge micro-ATX motherboard engineered for gamers, content creators, and PC builders who demand performance and future readiness. Designed around the AMD B850 chipset and supporting AMD’s Ryzen 7000 / 8000 / 9000 processor lineups, it combines efficiency, connectivity, and AI-centric features in a compact mATX form factor.
| Form Factor | Micro-ATX (mATX) |
| CPU Socket / Chipset | Ready for the latest AMD Ryzen 7000 / 8000 / 9000 CPUs, ensuring longevity and upgrade headroom. |
| Memory Support | 4 x DIMM Slots, DDR5 and Non-ECC, Un-buffered DIMM |
| Expansion / Slots | 1 × PCIe 5.0 ×16 slot 3 × PCIe 4.0 ×16 slot (support x1 mode) |
| Storage Interfaces | 1 × M.2 (PCIe 5.0 x4) 1 × M.2 (PCIe 4.0 x4) 1 × M.2 (PCIe 4.0 x2) 4 × SATA (6 Gbps) Ports |
| Connectivity | WiFi 5 (802.11ac) + Bluetooth 5.x 1x Realtek 1 Gb Ethernet (LAN) |
| USB & I/O |
Rear I/O: 2 × M.2 (PCIe 4.0 x4), 2 × USB 5Gbps (Type-A), 5 × USB 2.0 (Type-A) Front I/O: 1 × USB 5Gbps (Type-C), 2 × USB 5Gbps headers (4 ports), 2 × USB 2.0 headers (4 ports) Back Panel I/O: 2 × USB 10Gbps, 2 × USB 5Gbps, 5 × USB 2.0, 1 × DisplayPort, 1 × HDMI, 1 × Wi-Fi module, 1 × Realtek 1Gb LAN, 3 × Audio jacks, 1 × BIOS FlashBack button Internal I/O: Cooling: 1 × CPU Fan, 1 × CPU OPT, 1 × AIO Pump, 4 × Chassis Fan, Power: 24-pin Main, 8-pin +12V, 4-pin +12V, Storage: 3 × M.2, 4 × SATA, USB: 1 × USB-C 5Gbps, 2 × USB 5Gbps headers, 2 × USB 2.0 headers, Misc: 3 × ARGB Gen 2, Clear CMOS, Intrusion, COM, Front Audio, S/PDIF, SPI TPM, System Panel |
| Special / Reliability Features |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot, Stainless I/O) ASUS Q-Design (Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (VRM heatsink) EZ DIY (Pre-mounted I/O, BIOS FlashBack™ button/LED) Aura Sync RGB (ARGB Gen 2 headers) |
Key Features for ASUS B850M MAX Gaming WiFi Motherboard
- AEMP for enhanced DDR5 performance
- USB 10Gbps Type-C for rapid data transmission | USB 5Gbps Type-C for rapid data transmission
- WiFi 6 for stable WiFi connection and lower latency
- PCIe 5.0 slots for graphics card and storage
- Pre-mounted I/O shield for safeguarding ports and enhancing aesthetics
