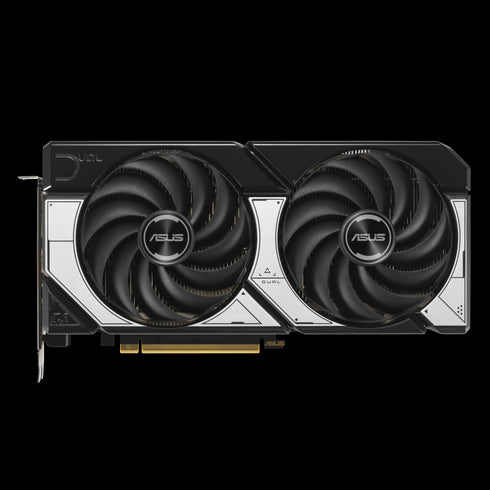

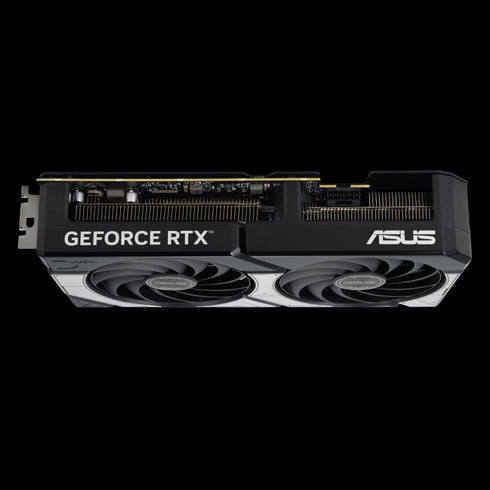

ASUS Dual GeForce RTX 5070 12GB GDDR7 OC Edition PCIe 5.0 Graphics Card

General Information

• The ASUS Dual GeForce RTX 5070 12GB GDDR7 OC Edition is a mid-to-high-end GPU tailored for modern gaming , content creation , and AI-enhanced workflows .
• Designed with ASUS Dual series cooling , this card offers efficient thermal management and compact design , making it ideal for ATX and Micro-ATX builds.
• Supports PCIe Gen5.0 x16 for future-proof bandwidth and compatibility with the latest platforms.
• Built with ASUS TUF-grade durability , military-spec components , and 0dB fan technology for silent idle performance.
• OC Mode offers a boost clock of up to 2572 MHz for improved performance over standard models.

GPU & Performance

• GPU Model: NVIDIA GeForce RTX 5070
• CUDA Cores: 6144 – enables high frame rates and smooth ray tracing
• Memory:
  • Capacity: 12GB GDDR7
  • Bus Interface: 192-bit
  • Memory Speed: 28 Gbps


• Bandwidth: Up to 672 GB/s (calculated from memory specs)
• Engine Clock (Boost):
  • OC Mode: Up to 2572 MHz
  • Default Mode: Up to 2542 MHz


• TDP: Not explicitly stated – expected to be around 250W–280W
• PCIe Interface: PCIe Gen5.0 x16 – ensures fast data transfer and compatibility with Z890, B760, and B650 motherboards

Display Outputs & Resolution Support

• Video Output Ports:
  • 1 x HDMI 2.1b
  • 3 x DisplayPort 2.1b


• Max Simultaneous Displays: Supports up to 4 monitors
• Max Resolution:
  • 7680 x 4320 (8K) via HDMI or DisplayPort


• HDCP Version: HDCP 2.3 – supports protected content playback
• Display Compatibility:
  • Supports NVIDIA G-SYNC , FreeSync , and HDR
  • When used via integrated graphics on Thunderbolt™, bandwidth is limited by DisplayPort™ 2.1 (up to 77.4 Gbit/s )


• DLSS & AI Features:
  • Full support for DLSS 4 , ray reconstruction , and AI upscaling
  • Compatible with Adobe Creative Cloud , Blender , and Unreal Engine for creative workflows

Cooling & Durability Features

• Axial-Tech Fan Design:
  • Two high-pressure fans with optimized blade layout
  • Improved airflow and cooling efficiency


• 0dB Fan Technology:
  • Fans stop when GPU temperature is below idle threshold – silent operation under light loads


• Thermal Solution:
  • Dual-slot heatsink with direct-die contact
  • Designed for compact cases with 2.5-slot footprint


• Dual BIOS:
  • Performance Mode – for maximum cooling and overclocked performance
  • Quiet Mode – for silent operation during productivity or idle


• Backplate: Reinforced for structural rigidity and passive cooling

Physical Design & Build Quality

• Form Factor: 2.5-slot design – fits most ATX and mid-tower cases
• Dimensions: Approximately 329 x 140 x 62.5 mm (varies slightly by model)
• Weight: Not specified – standard for mid-tier GPUs (approx. 1.4–1.8kg)
• Build Materials:
  • Reinforced shroud
  • Metal backplate for stability


• Power Connector:
  • 1 x 16-pin 12VHPWR connector


• Mounting: Standard dual-slot bracket with secure screw mounting

Software & Customization

• Included Software:
  • ASUS GPU Tweak III – overclocking, monitoring, and fan tuning
  • GameVisual – display preset modes for different game genres


• Fan Control:
  • Supports motherboard-based fan tuning
  • Manual fan curve adjustment via software


• Dual BIOS:
  • BIOS switch for Performance or Silent mode


• Overclocking Ready: Factory-overclocked with BIOS switch for tuning
• RGB Lighting: Not specified – likely standard black finish (no RGB)
