رمز المنتج: 90AR0062-M00040
نوع المنتج: Mini PC
ASUS NUC 14 Pro | RNUC14RVKI300002I | Intel Core 3 100U | Intel Graphics | No Memory | No Storage | 2x HDMI | Thunderbolt 4 | DOS | UK Cord
بسرعة! فقط 0 متوفر الآن!
Shipping within 4 to 5 working days in UAE
انيجما تعد واحد من افضل المتاجر الاونلاين فى الامارات
رضاء العميل هو هدفنا لذلك فكل القطع شاملة سنة ضمان محلى
ASUS NUC 14 Pro — Intel Core 3 100U | Slim Barebone Kit | No Memory | No Storage | DOS
The ASUS NUC 14 Pro (RNUC14RVKI300002I) is an ultra-compact, less-than-one-liter slim barebone kit designed for professionals, businesses, and system builders who want to configure their own memory and storage. Powered by the Intel® Core™ 3 100U processor (6 cores, 8 threads, up to 4.7GHz, 25W cTDP), this Slim form-factor NUC measures just 117 × 112 × 37mm and weighs only 470g — yet delivers comprehensive connectivity including 2× Thunderbolt 4, 2× HDMI 2.1 (4K@60Hz), 2.5G LAN, Wi-Fi 6E, and USB 3.2 Gen2×2 Type-C. Toolless chassis access makes RAM and SSD upgrades fast and easy. Ships without memory, storage, or OS — configure to your needs. Includes VESA bracket, AC adapter, and cable clip.
Key Features
- Intel® Core™ 3 100U — 2 P-cores + 4 E-cores, 8 threads, up to 4.7GHz Turbo, 25W cTDP, Raptor Lake Refresh
- Intel® Graphics — integrated GPU (supports up to 4 displays)
- Ultra-compact slim form factor — 117 × 112 × 37mm, 470g, less than 1 liter
- No memory included — 2× DDR5-5600 SO-DIMM slots, up to 48GB max
- No storage included — M.2 2280 PCIe Gen4×4 (Slot 1) + M.2 2242 PCIe Gen4×4 (Slot 2)
- 2× Thunderbolt 4 Type-C (DisplayPort 1.4 + USB4) — rear
- 2× HDMI 2.1 TMDS (4K@60Hz, CEC) — rear
- 1× USB 3.2 Gen2×2 Type-C (20Gbps) — front
- 2× USB 3.2 Gen2 Type-A — front | 1× USB 3.2 Gen2 Type-A — rear | 1× USB 2.0 Type-A — rear
- Intel® i226-V 2.5G Ethernet (RJ45)
- Intel® Wi-Fi 6E AX211 (802.11ax, Gig+) + Bluetooth 5.3 w/ internal antennas
- Toolless chassis access — easy, safe, and fast upgrades
- VESA mounting bracket included — mount behind any VESA-compatible monitor
- 90W AC adapter (19VDC, 4.74A) included | UK power cord
- 1× Kensington Lock slot
- Supports: Windows 11, Chrome OS Flex, RedHat Enterprise Linux, Ubuntu 24.04 LTS
- 3-Year Warranty | Qualified for 24×7 operation
Specifications
Processor
| CPU | Intel® Core™ 3 100U |
| Architecture | Raptor Lake Refresh (14th Gen) |
| Cores / Threads | 6 Cores (2P + 4E) / 8 Threads |
| Base / Turbo | 1.2GHz P-core base / 4.7GHz Turbo |
| Cache | 10MB L3 |
| TDP | 25W cTDP |
Graphics
| GPU | Intel® Graphics (integrated) |
| Display Support | Up to 4 displays simultaneously |
| Output Formats | 2× HDMI 2.1 + 2× Thunderbolt 4 (DP 1.4) |
Memory
| Slots | 2× SO-DIMM |
| Type | DDR5-5600 |
| Max Capacity | 48GB (2× 24GB) |
| Included | None — Bring Your Own Memory |
Storage
| Slot 1 | M.2 2280 PCIe Gen4×4 NVMe (128GB–4TB) |
| Slot 2 | M.2 2242 PCIe Gen4×4 NVMe (128GB–2TB) |
| Included | None — Bring Your Own Storage |
Connectivity
| Wi-Fi | Intel® Wi-Fi 6E AX211 (Gig+, 802.11ax, 6GHz) |
| Bluetooth | Bluetooth 5.3 (internal antenna, dongle-free certified) |
| LAN | 1× Intel® i226-V 2.5G Ethernet |

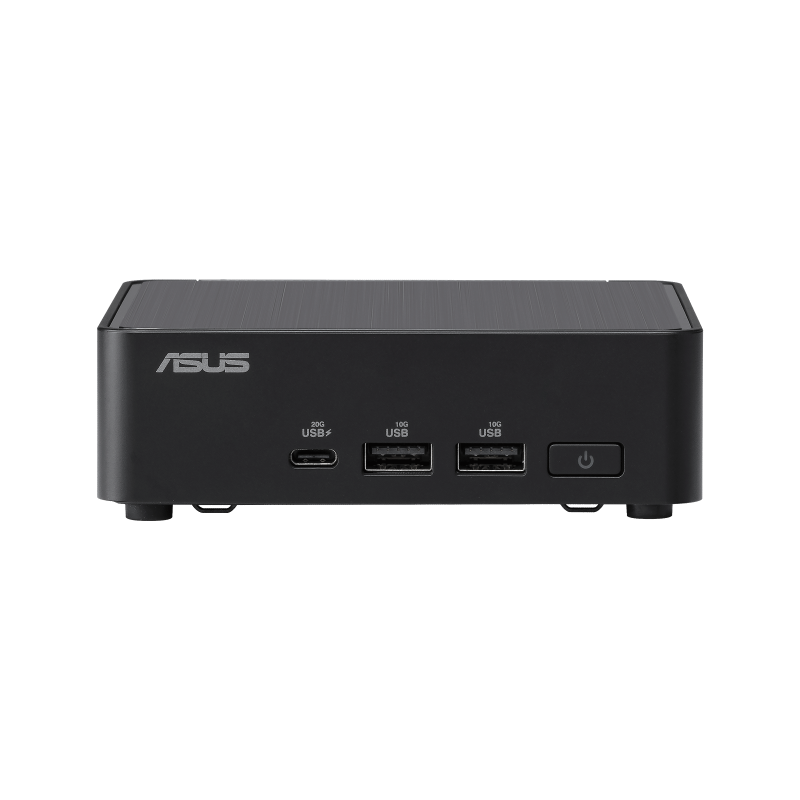

Front I/O
| USB Type-C | 1× USB 3.2 Gen2×2 (20Gbps) |
| USB Type-A | 2× USB 3.2 Gen2 (10Gbps) |
| Security | 1× Kensington Lock slot |

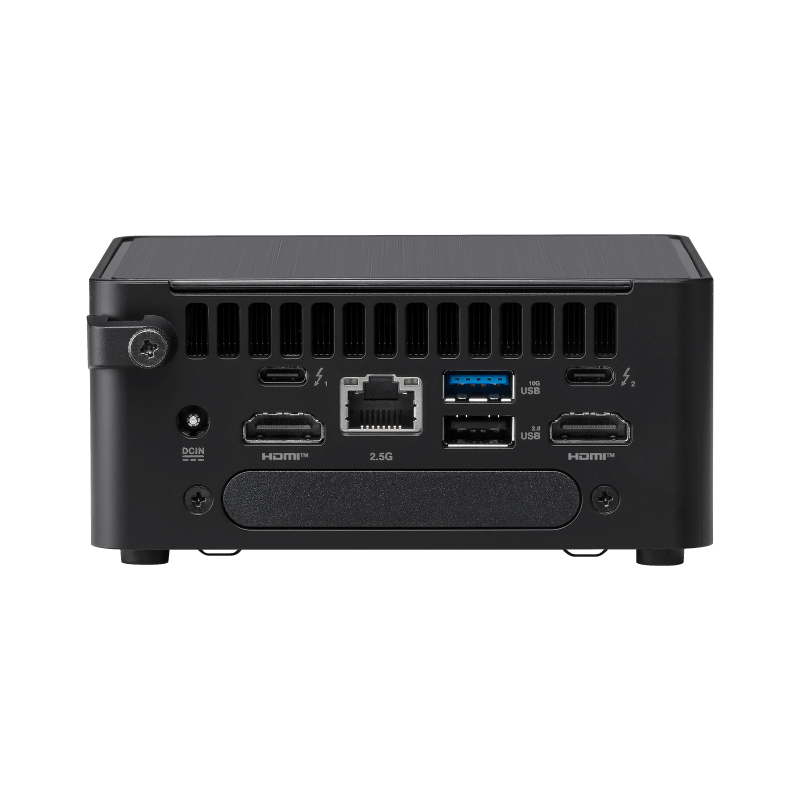

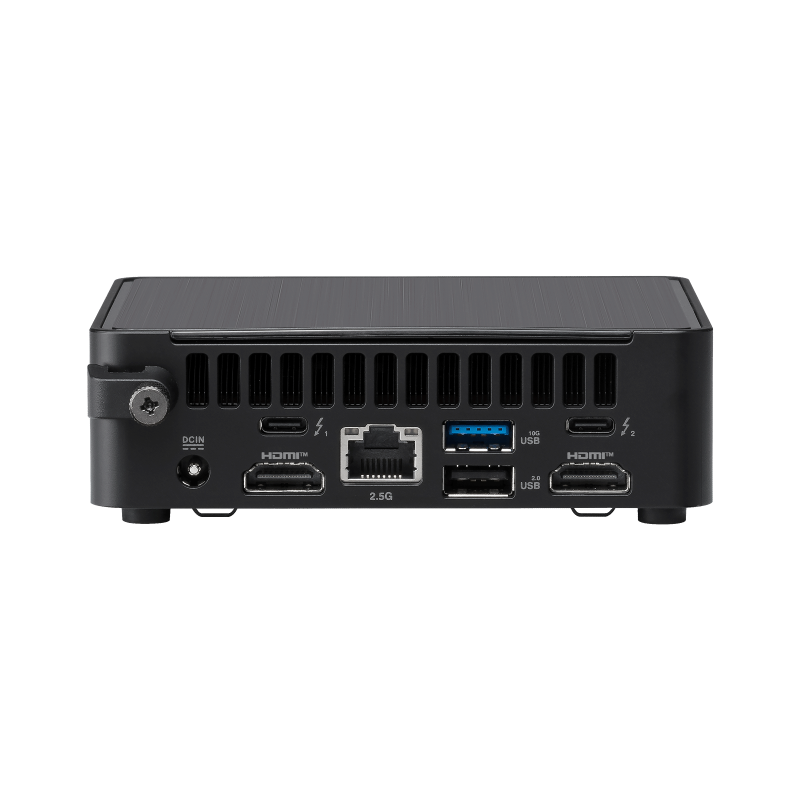

Rear I/O
| Thunderbolt 4 | 2× Type-C (DisplayPort 1.4 + USB4 40Gbps) |
| HDMI | 2× HDMI 2.1 TMDS (4K@60Hz, CEC) |
| USB Type-A | 1× USB 3.2 Gen2 + 1× USB 2.0 |
| LAN | 1× RJ45 2.5G |
| Power | 1× DC-in |
Power
| AC Adapter | 90W (19VDC, 4.74A) |
| Power Cord | UK cord included |
Physical
| Dimensions (W×D×H) | 117 × 112 × 37 mm |
| Weight | 470g |
| Color / ID | Black (no ASUS logo — kit version) |
| Form Factor | Slim UCFF (Ultra Compact Form Factor) |
General
| Model | RNUC14RVKI300002I |
| SKU | 90AR0062-M00040 |
| OS Support | DOS (supports Windows 11, Chrome OS Flex, RHEL, Ubuntu 24.04) |
| Warranty | 3 Years | 24×7 Operation Qualified |
| In Box | AC Adapter + UK Power Cord + VESA Bracket + Screws + Cable Clip + Safety Insert + Warranty Card |
