ASUS ROG Thor 1600W 80 Plus Titanium PCIE 5.0 Full Modular ATX Power Supply

ROG THOR 1600W 80 PLUS Titanium Fully Modular Power Supply From ASUS

Enormous Power, Quiet Operation The ROG Thor 1600W Titanium is the PSU for PC enthusiasts who demand huge power, stunning aesthetics and mind-boggling efficiency. ASUS has brought their first PSU to the market that is packed with innovative ideas, including Aura Sync RGB illumination, an integrated OLED information panel, an axial-tech PWM fan, integrated ROG heatsinks and LAMBDA A++ certification to ensure this latest iteration wields menacing power with minimal noise. The THOR 1600W is bundled with a 16-pin PCIe cable capable of delivering 600W of power to the hungry PCIe Gen5 Graphics cards. If you're in the market for an absolute beast of a power supply, look no further than the ROG Thor.

Gallium Nitride MOSFETs - Maximise Your Efficiency

Gallium nitride MOSFETs are the source of Thor’s power. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being needlessly wasteful.

Digital Power Control
A digital controller provides precise control over the GaN power array, facilitating lightning-fast response to load changes.

80 PLUS TITANIUM CERTIFICATION
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying Thor to reliably fuel your build for years to come.

Keeping it cool
Integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the PSU, further extending component lifespan.

135MM PWM FAN
The PWM-controlled Axial-tech fan shifts 21% more air and needs fewer revolutions to cool critical components. And because Thor is designed from the ground up to stay cool, the fan shuts off entirely when the PSU load is 50% or below.

Keeping Noise To a minimum
Thor Titanium cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.

PCIE GEN 5.0 READY
The PWM-controlled Axial-tech fan shifts 21% more air and needs fewer revolutions to cool critical components. And because Thor is designed from the ground up to stay cool, the fan shuts off entirely when the PSU load is 50% or below.

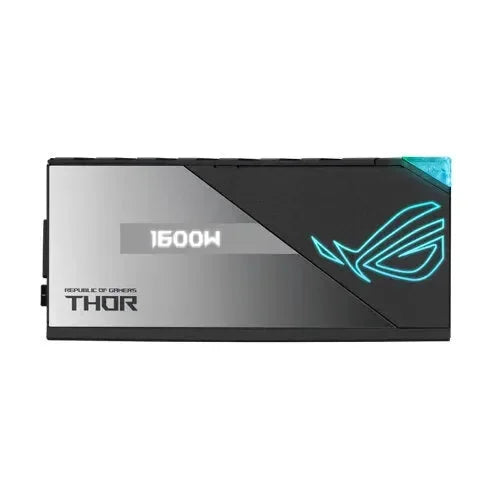

OLED Power Display
Located on the side of the PSU, the ROG Thor 1600W titanium features a stunning OLED panel, that provides insight into total power draw, making it easier to tune system performance and efficiency.

Aura Sync
ROG Thor features built-in addressable Aura RGB LEDS, ready to accent your rig with an array of colours and lighting effects.

Intel Specification: ATX12V

PFC Type: Active PFC

Dimensions: 190 x 150 x 86 mm

Efficiency: 80Plus Titanium

MTBF: >120,000 hrs @ 25°C

Protection Features:

OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 133.3A 0.3A 3A
Combined Load
100W 100W 1600W 3.6W 15W
Total Output
1600W (115V-240V). 1300W (100V-115V)

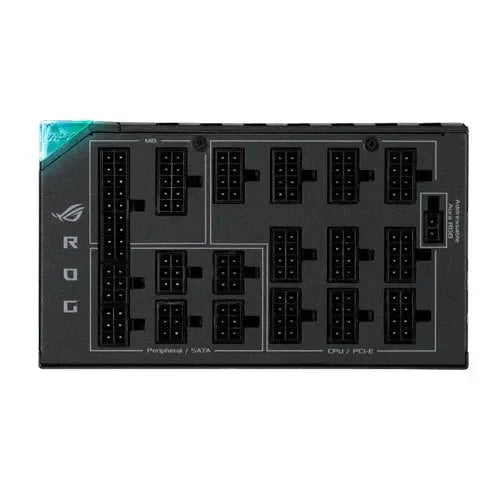

Cable Connectors:

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 10
SATA x 12
PERIPHERAL x 6

Package Contents:

Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
16-pin PCI-E Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 6 (675mm)
PCI-E 1-to-2 Cable x 2 (675+75mm)
SATA 1-to-4 Cable x 3 (400+120+120+120mm)
Peripheral 1-to-2 Cable x3 (450+120mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1

Weight: 2.69kg (single PSU)

AURA SYNC: ARGB

Cybenetics Noise Level Certification: A++

0dB Technology:
Supported. The fan shuts off entirely when the PSU is under certain load
