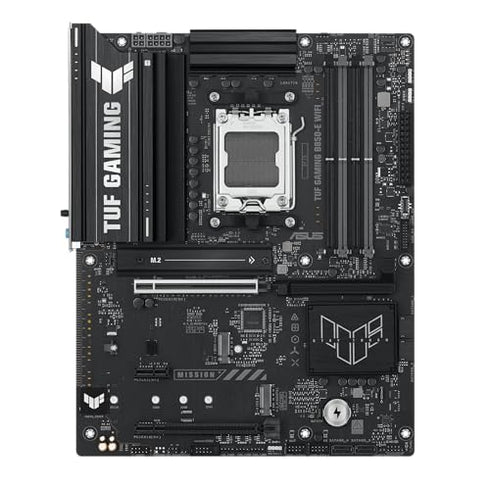

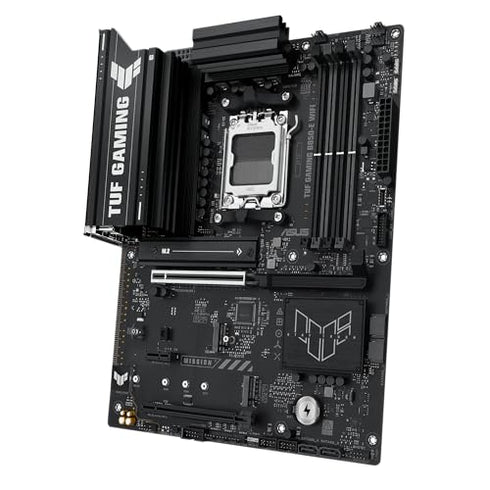

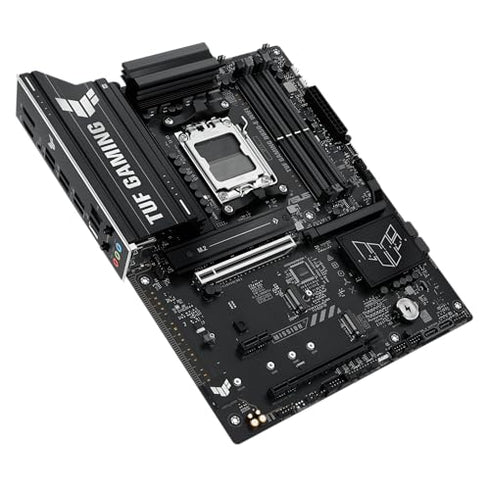

Asus TUF GAMING B850-E WIFI ATX AM5 Gaming Motherboard

Asus TUF GAMING B850-E WIFI is an ATX AM5 gaming motherboard built for AMD Ryzen 7000, 8000, and 9000 series CPUs, combining robust power delivery, advanced cooling, and next‑gen connectivity for high-performance gaming builds.

Key features

• AM5 platform with AMD B850 chipset supporting Ryzen 7000/8000/9000 processors for modern gaming and content creation.

• Four DDR5 DIMM slots with support for high-speed dual-channel memory up to 8000 MHz (OC) and up to 256 GB total capacity.

• PCIe 5.0 x16 slot for latest-generation GPUs plus an M.2 PCIe 5.0 x4 slot and two M.2 PCIe 4.0 x4 slots for ultra-fast NVMe SSD storage.

Connectivity and networking

• Integrated WiFi 6E and Bluetooth 5.3 for high-bandwidth wireless networking and peripheral connectivity.

• Realtek 2.5 GbE LAN with TUF LANGuard for reliable, low-latency wired connections.

• Rich rear I/O including USB 3.x Type-A and Type-C, HDMI and DisplayPort outputs (for APUs), and 8-channel audio jacks.

Cooling and durability

• TUF Gaming design with reinforced PCIe slot, military‑grade components, and large VRM and M.2 heatsinks for stable operation under heavy loads.

• Comprehensive fan and pump headers plus hybrid controls for fine-tuned system cooling and noise management.

Ideal use case

• A reliable ATX motherboard for mid‑to‑high‑end AMD gaming PCs needing PCIe 5.0 support, strong power delivery, and modern wireless networking.

• Well-suited for 1440p and 4K gaming builds with fast DDR5 RAM and multiple high-speed NVMe SSDs.
