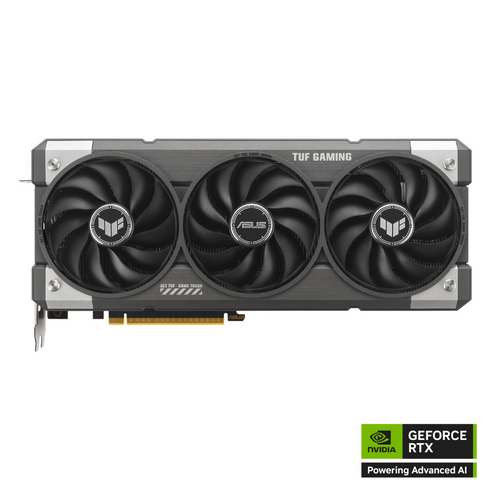

ASUS TUF Gaming GeForce RTX 5060 8GB GDDR7 OC Edition

General Information

• Designed For: Gamers and creators seeking strong 1080p/1440p performance with modern features
• Use Case: Ideal for high-refresh-rate gaming, content creation, and productivity tasks
• Build Quality: Features TUF-grade durability , military-spec components , and dual BIOS support
• Color: Black with TUF Gaming aesthetic
• Warranty: Not specified in the provided data – standard is typically 3+ years

GPU & Performance Specifications

• GPU Model: NVIDIA GeForce RTX 5060
• CUDA Cores: 3840
• Engine Clock (Boost):
  • OC Mode: Up to 2677 MHz
  • Default Mode: 2640 MHz
• Memory:
  • Capacity: 8GB GDDR7
  • Bus Interface: 128-bit
  • Speed: 28 Gbps
• Bandwidth: Calculated bandwidth of up to 448 GB/s
• TDP: Approximately 145W
• Recommended PSU: 300W or higher (minimum)
• PCIe Interface: PCI Express Gen 5.0

Display Outputs & Resolution Support

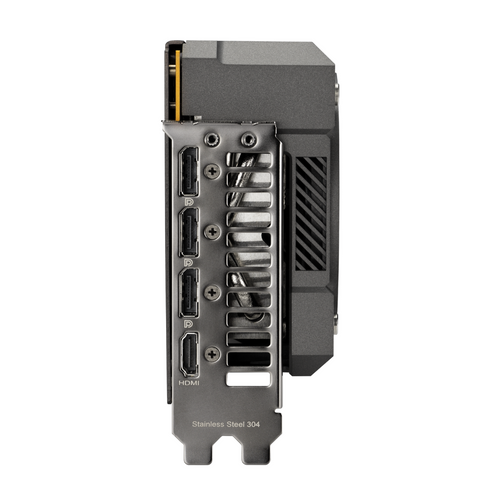

• Video Outputs:
  • 1 x HDMI 2.1b
  • 3 x DisplayPort 2.1b
• Max Simultaneous Displays: Up to 4 monitors
• Max Resolution:
  • Supports up to 7680 x 4320 (8K) resolution via HDMI 2.1 or DisplayPort 2.1
• HDCP Version: HDCP 2.3
• OpenGL Support: OpenGL 4.6

Cooling & Durability Features

• Military-Grade Components: Ensures long-term reliability and thermal stability
• TUF Cooling Design: Enhanced heatsink and fan design for efficient heat dissipation
• Dual BIOS: Offers performance and quiet mode options for flexible tuning
• Thermal Design: Optimized airflow layout for dual-slot cooling efficiency

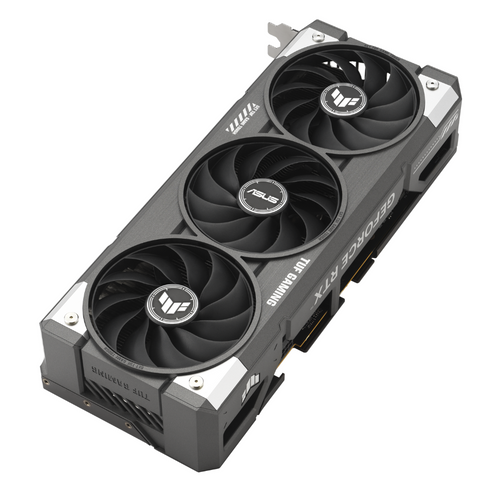

• Fan Configuration: Axial-tech fans with low-noise idle mode

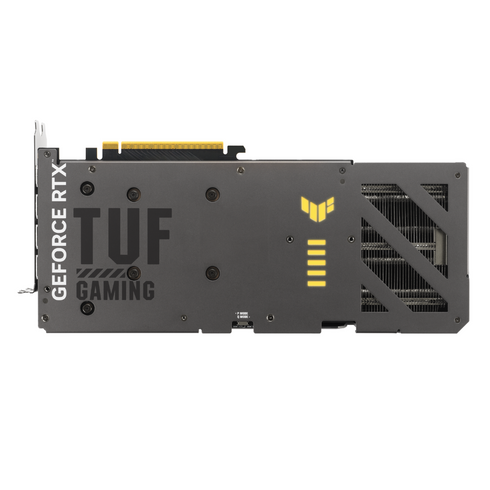

• Backplate: Reinforced metal backplate for structural rigidity and passive cooling

Software & Technologies

• Included Software:
  • ASUS GPU Tweak II – overclocking, monitoring, and tuning
  • GameVisual – display preset modes for different game genres
  • GPU-Z – system diagnostics and logging
• NVIDIA Technologies Supported:
  • DLSS 3.x AI upscaling
  • Ray tracing acceleration
  • Reflex latency reduction
  • Studio Drivers for creative workflows
• Overclocking Ready: Factory-overclocked with BIOS switch for performance or silent mode

Physical Dimensions & Installation

• Length: Standard dual-slot ATX case compatibility
• Height: Fits most mid-tower cases
• Power Connectors: Not specified (likely 12VHPWR or 8-pin)
• Included Accessories:
  • User manual
  • Driver disk / QR code for software download
  • Optional mounting bracket or cable adapter (varies by model)
