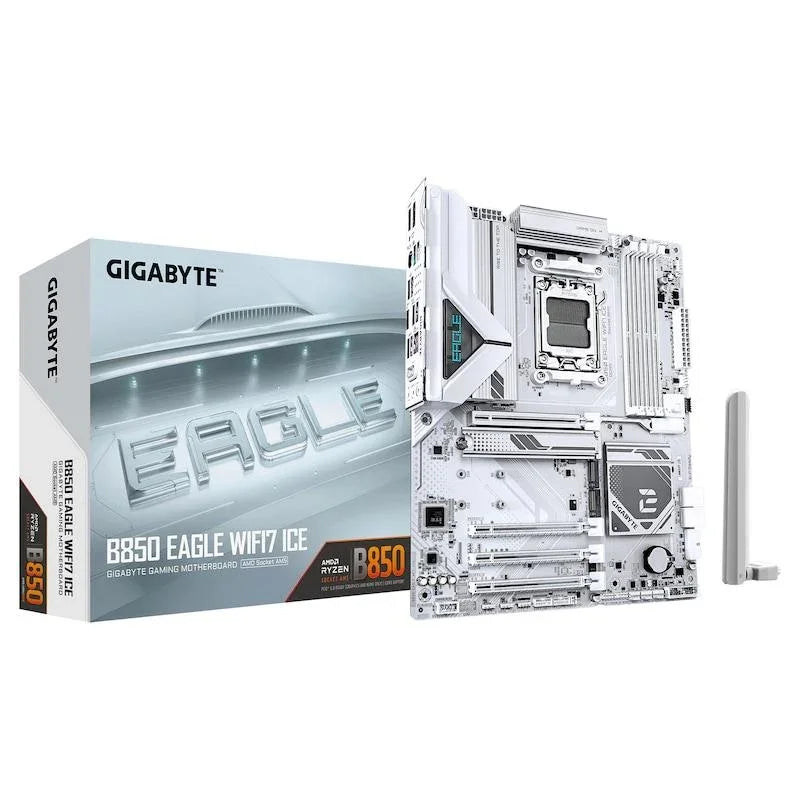

Gigabyte B850 EAGLE WIFI7 ICE ATX AM5 Motherboard

The Gigabyte B850 EAGLE WIFI7 ICE is a white-themed ATX AM5 motherboard with B850 chipset, DDR5 support up to 8200 MT/s (OC), PCIe 5.0, triple M.2, Wi‑Fi 7, and 2.5 GbE, aimed at mid‑high end gaming and creator builds.

Key platform specs

• Socket & chipset: AMD B850 chipset with AM5 socket (LGA 1718), supporting Ryzen 7000/8000/9000 series CPUs including X3D models.

• Memory: 4× DDR5 DIMM slots, dual‑channel, supporting JEDEC and EXPO profiles with overclocking up to about 8200 MT/s depending on CPU and RAM kit.

• Form factor & design: Full‑size ATX board with “ICE” white aesthetic (heatsinks and accents) to match white cases and components.

Expansion and storage

• PCIe: 1× reinforced PCIe 5.0 x16 “Ultra Durable” GPU slot, plus additional PCIe 4.0/3.0 slots for add‑in cards (exact layout per spec page).

• M.2 & SATA: 3× M.2 NVMe slots total, with at least one PCIe 5.0 x4 and others PCIe 4.0 x4, all with M.2 Thermal Guard heatsinks, plus 4× SATA 6 Gb/s for 2.5" SSDs/HDDs.

Connectivity and networking

• Wi‑Fi & LAN: Realtek Wi‑Fi 7 (RTL8922AE) with 2.4/5/6 GHz support, 160 MHz channels, and directional ultra‑high gain magnetic‑base antenna, plus Realtek 2.5 GbE LAN.

• USB & display: Rear panel has multiple USB‑A plus USB‑C, and the board offers front USB‑C 5 Gb/s header for cases with Type‑C; HDMI and DisplayPort are present for Ryzen APUs with integrated graphics.

Power, cooling, and extras

• VRM & thermals: Digital VRM with VRM Thermal Armor Advanced heatsinks, multiple fan headers, and smart fan control in BIOS/software for cooling tuning.

• Other features: RGB Fusion with RGB and ARGB headers, Q‑Flash for BIOS updates, and Gigabyte “Ultra Durable” design focused on PCB and component longevity.
