رمز المنتج: B850M-FORCE
نوع المنتج: Motherboard
GIGABYTE B850M FORCE AMD B850 AM5 Micro-ATX Motherboard | DDR5 128GB | PCIe 5.0 x16 | 3x M.2 | 2.5GbE | ARGB
AED 489.00
بسرعة! فقط 0 متوفر الآن!
Shipping within 1 working day in UAE
انيجما تعد واحد من افضل المتاجر الاونلاين فى الامارات
رضاء العميل هو هدفنا لذلك فكل القطع شاملة سنة ضمان محلى

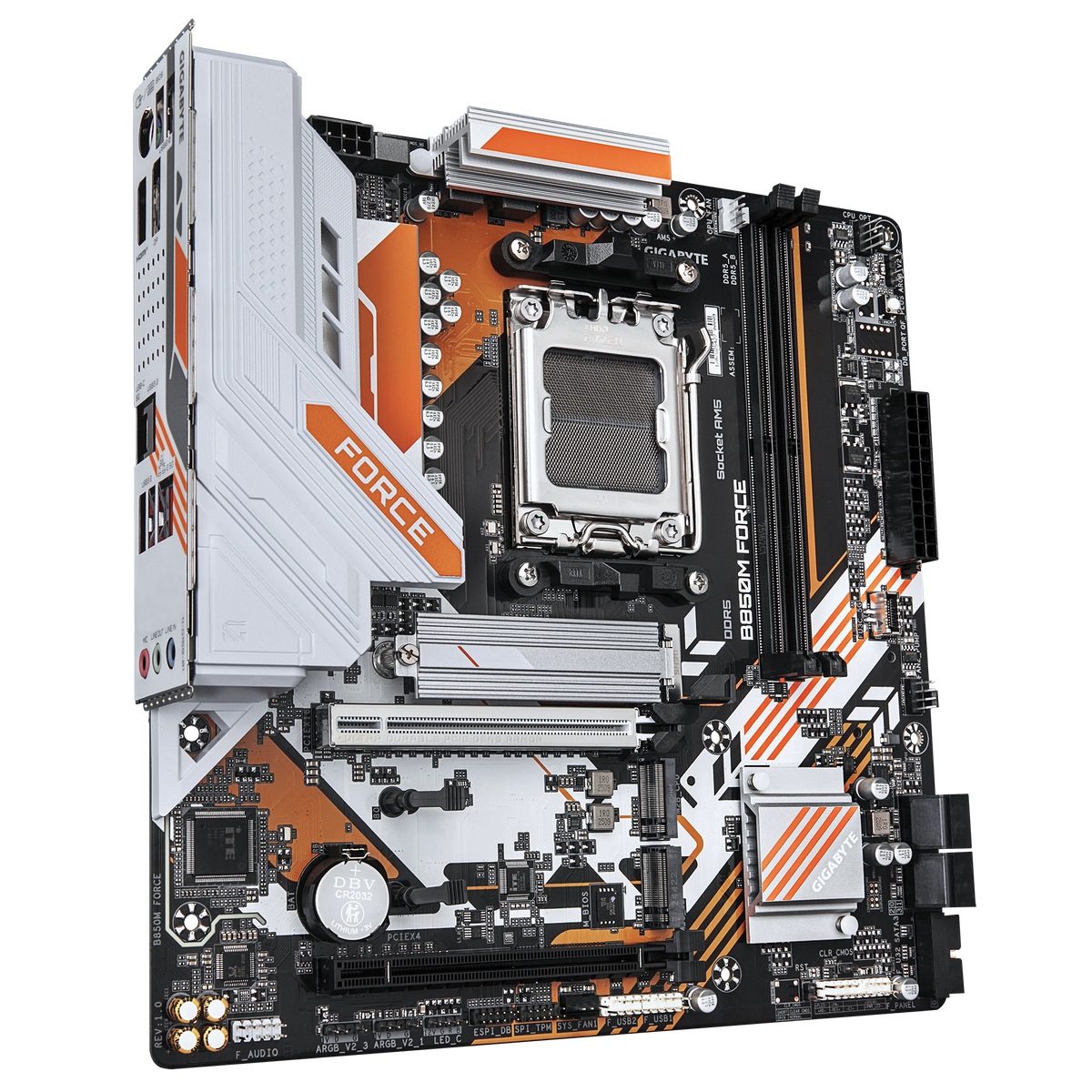

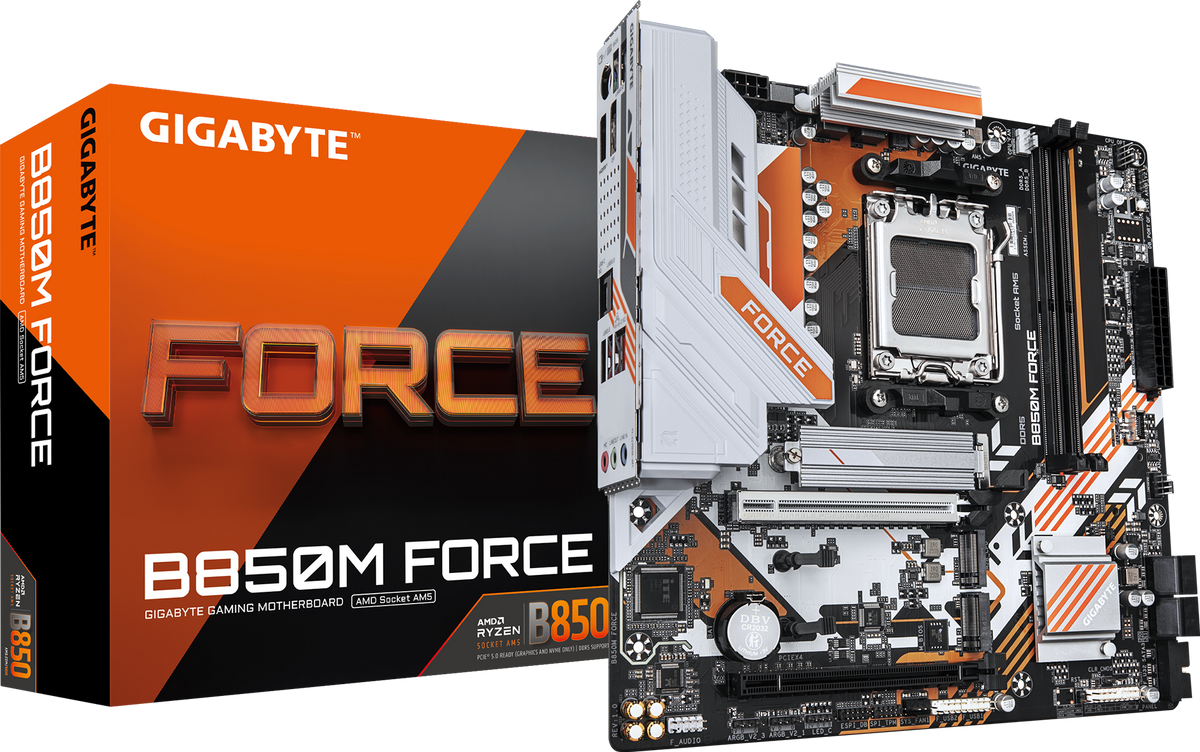

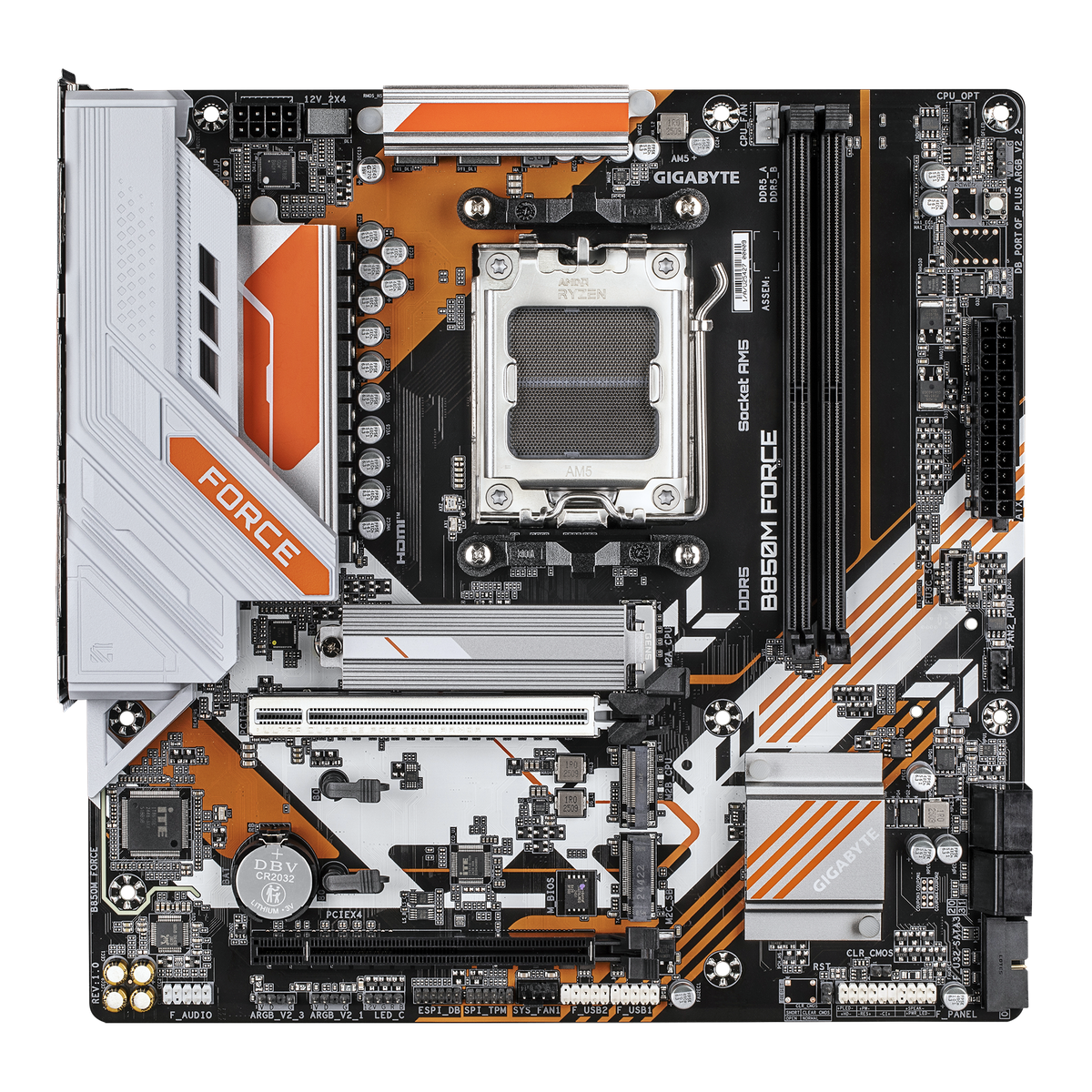

GIGABYTE B850M FORCE (Rev. 1.0) — AMD AM5 Micro-ATX Motherboard
The GIGABYTE B850M FORCE is a feature-packed Micro-ATX motherboard built on the AMD B850 chipset for AM5 processors. Designed for AMD Ryzen™ 9000/8000/7000 series CPUs, it delivers PCIe 5.0 on both the primary x16 slot and the top M.2 slot, DDR5 support up to 9600 MT/s (OC), a robust 8+2+2 digital VRM, X3D Turbo Mode for one-click gaming performance boosts, GIGABYTE's D5 Bionic Corsa AI overclocking (AORUS AI SNATCH), 2.5GbE LAN, Hi-Fi audio, RGB Fusion 2.0 with 3× ARGB headers, PCIe EZ-Latch, and Q-Flash Plus — all in a 244 × 244mm Micro-ATX footprint.
Key Features
- AMD Socket AM5 — Supports Ryzen™ 9000 / 8000 / 7000 Series Processors
- AMD B850 Chipset
- X3D Turbo Mode — one-click gaming FPS boost up to 18% (Ryzen 9000 X3D and non-X3D)
- D5 Bionic Corsa — AORUS AI SNATCH one-click CPU + DDR5 OC (up to 9% performance boost)
- HyperTune BIOS — AI-driven BIOS signal optimization (95%+ tuning accuracy)
- 8+2+2 Digital VRM with DrMOS — stable power delivery for overclocking
- VRM Thermal Armor Advanced — one-piece heatsink with 3× larger surface area
- 2× DDR5 DIMM slots — up to 128GB, DDR5 9600(OC) max, AMD EXPO™ + XMP support
- 1× PCIe 5.0 x16 slot (PCIEX16) — PCIe EZ-Latch for tool-free GPU removal
- 1× PCIe 4.0 x4 slot (PCIEX4)
- 3× M.2 slots — 1× PCIe 5.0 x4 (M2A_CPU) + 1× PCIe 4.0 x4 (M2B_CPU) + 1× PCIe 4.0 x2 (M2C_SB), all 2280, all with M.2 Thermal Guard
- 4× SATA 6Gb/s connectors | RAID 0/1/5/10 support
- Realtek® 2.5GbE LAN
- Realtek® 8-channel HD Audio + High-End Audio Capacitors + Audio Noise Guard
- RGB Fusion 2.0 — 3× ARGB Gen2 headers + 1× RGB LED header
- Smart Fan 6 — 4× PWM/DC fan headers, dual curve mode, fan stop
- EZ Debug Zone — debug LEDs + Q-Flash Plus button (BIOS flash without CPU/RAM/GPU)
- DRAM Installation Optimization Indicator LED
- UC BIOS — Multi-Theme, AIO Fan Control, Q-Flash Auto Scan
- AI-Driven PCB Design — AI-ViaFusion, AI-Trace, AI-Layer technologies
- Onboard video output: 1× HDMI 2.1 (4K@60Hz) + 1× DisplayPort 1.4 (4K@144Hz)
- Micro-ATX Form Factor — 244 × 244mm
- Supports Windows 11 / Windows 10 64-bit
Specifications
Platform
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Chipset | AMD B850 |
| Form Factor | Micro-ATX — 244 × 244mm |
Memory
| Slots | 2× DDR5 DIMM (Dual Channel) |
| Max Capacity | 128GB (64GB single DIMM) |
| Speed Support | DDR5 4400 / 4800 / 5200 / 5600(OC) up to 9600(OC) MT/s |
| Profiles | AMD EXPO™ + XMP |
Expansion Slots
| PCIEX16 | 1× PCIe 5.0 x16 (CPU) — PCIe EZ-Latch |
| PCIEX4 | 1× PCIe 4.0 x4 (Chipset) |
Storage
| M2A_CPU | M.2 2280 PCIe 5.0 x4 (Ryzen 9000/7000) — with Thermal Guard |
| M2B_CPU | M.2 2280 PCIe 4.0 x4 (Ryzen 9000/7000) — with Thermal Guard |
| M2C_SB | M.2 2280 PCIe 4.0 x2 (Chipset) — with Thermal Guard |
| SATA | 4× SATA 6Gb/s | RAID 0/1/5/10 |

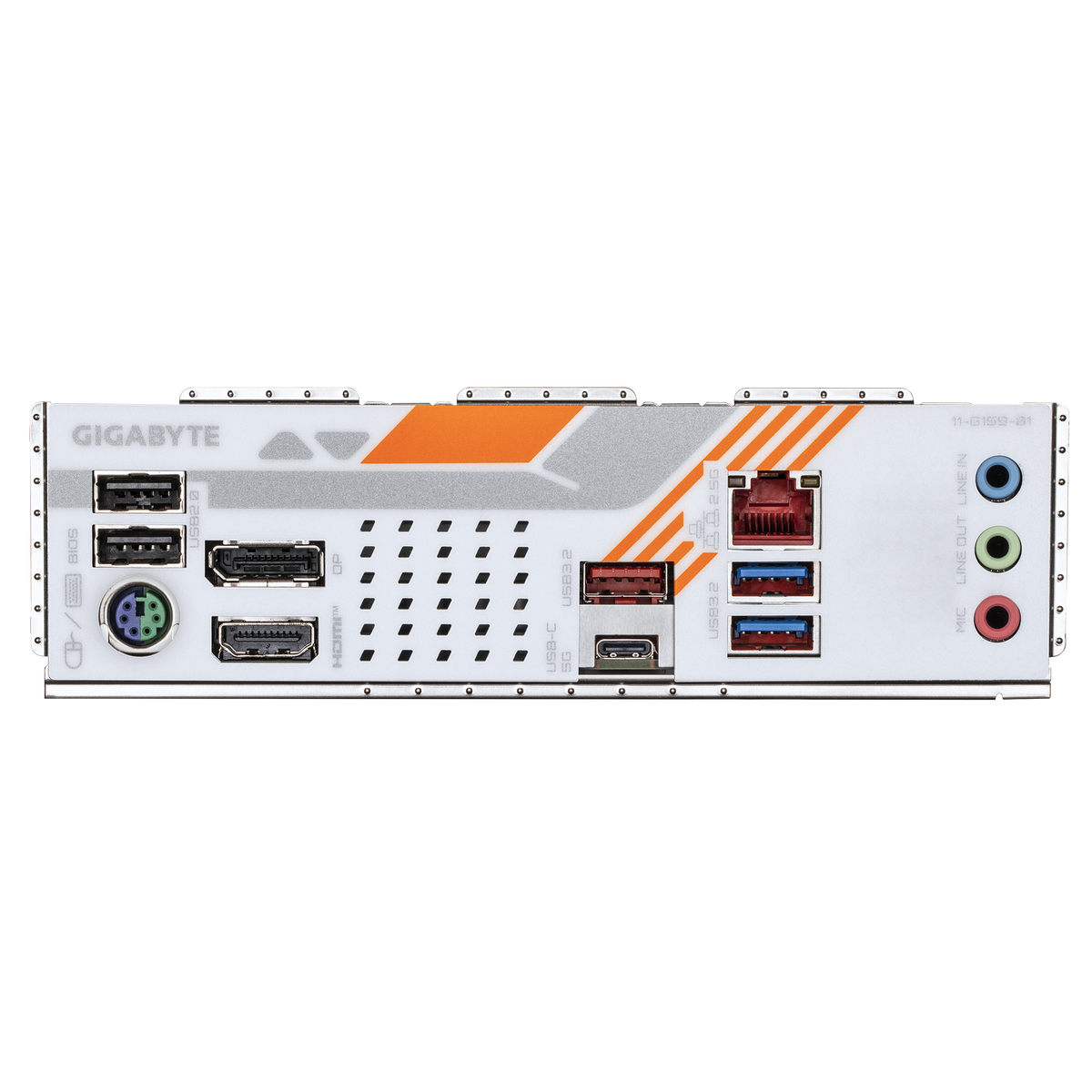

Back Panel I/O
| Video | 1× HDMI 2.1 (4096×2160@60Hz) + 1× DisplayPort 1.4 (3840×2160@144Hz) |
| USB Type-C | 1× USB 3.2 Gen 1 |
| USB Type-A | 1× USB 3.2 Gen 2 (red) + 2× USB 3.2 Gen 1 + 2× USB 2.0 |
| LAN | 1× RJ45 2.5GbE (Realtek) |
| Audio | 3× audio jacks (8-CH HD) |
| Legacy | 1× PS/2 keyboard/mouse port |
Internal Connectors
| Power | 24-pin ATX + 8-pin CPU (UD Solid Pin) |
| Fan Headers | 4× total — 1× CPU, 1× CPU/pump, 1× SYS, 1× SYS/pump |
| Internal USB | 1× USB-C 3.2 Gen 1 header + 1× USB 3.2 Gen 1 header + 2× USB 2.0 headers |
| RGB | 3× ARGB Gen2 + 1× RGB headers |
| Buttons | 1× Q-Flash Plus | 1× Reset | 1× Clear CMOS jumper |
| TPM | 1× TPM header (GC-TPM2.0 SPI V2) |
Audio
| Codec | Realtek® HD Audio |
| Channels | 2/4/5.1/7.1-channel |
| Features | High-End Audio Capacitors + Audio Noise Guard |
BIOS
| Flash | 256 Mbit AMI UEFI BIOS |
| Features | Q-Flash Plus, Q-Flash Auto Scan, UC BIOS, HyperTune, X3D Turbo Mode, AORUS AI SNATCH, Smart Fan 6 |
General
| Model | B850M FORCE |
| Revision | Rev. 1.0 |
| OS Support | Windows 11 / Windows 10 64-bit |
| Software | GIGABYTE Control Center (GCC), RGB Fusion 2.0, Smart Backup, Norton Internet Security (OEM) |
