رمز المنتج: GV-N506TWF2OC-8GD
نوع المنتج: Graphics Card
GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 8G | 8GB GDDR7 | 4608 Cores | 2587MHz | DP 2.1b | GV-N506TWF2OC-8GD
بسرعة! فقط 0 متوفر الآن!
Shipping within 1 working day in UAE
انيجما تعد واحد من افضل المتاجر الاونلاين فى الامارات
رضاء العميل هو هدفنا لذلك فكل القطع شاملة سنة ضمان محلى

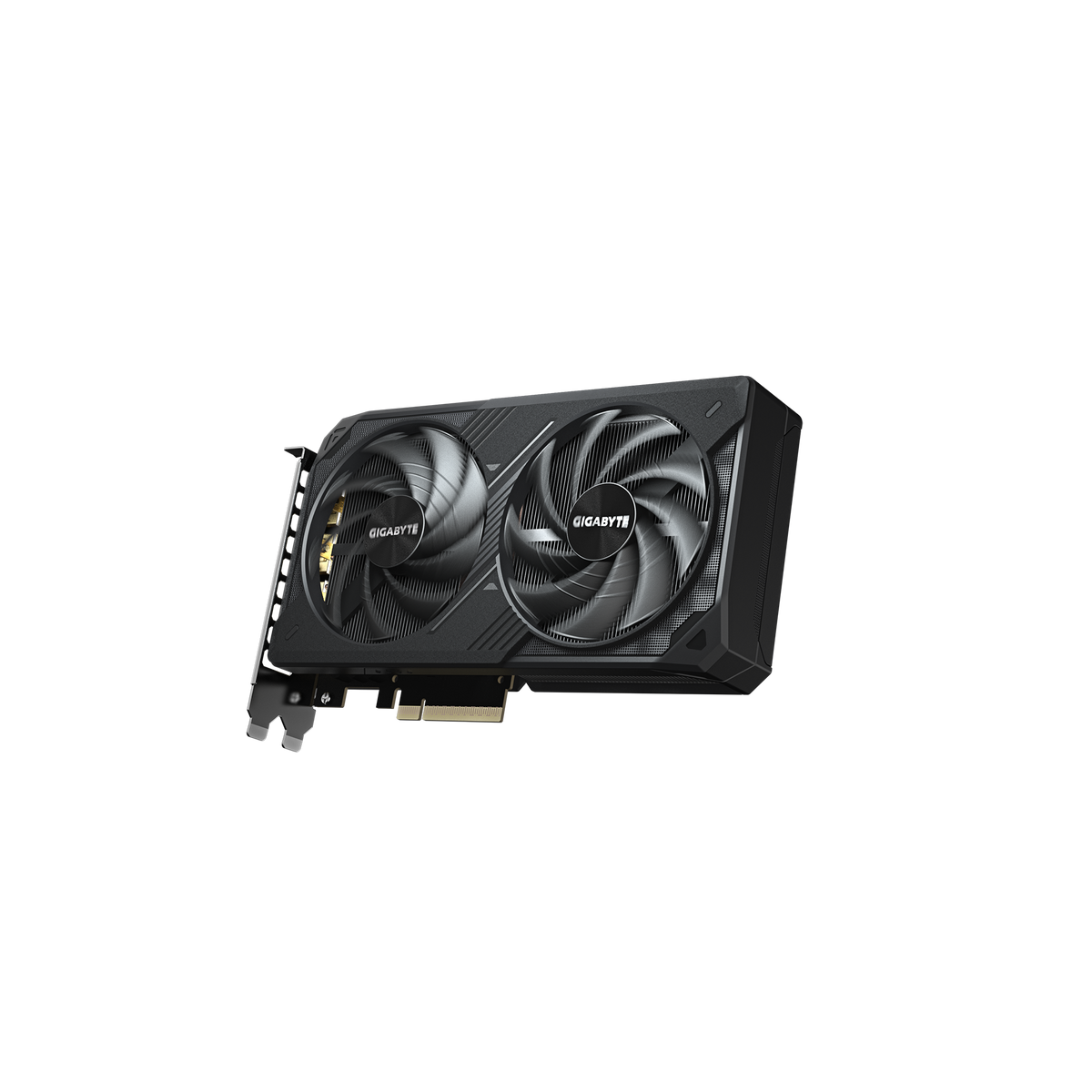

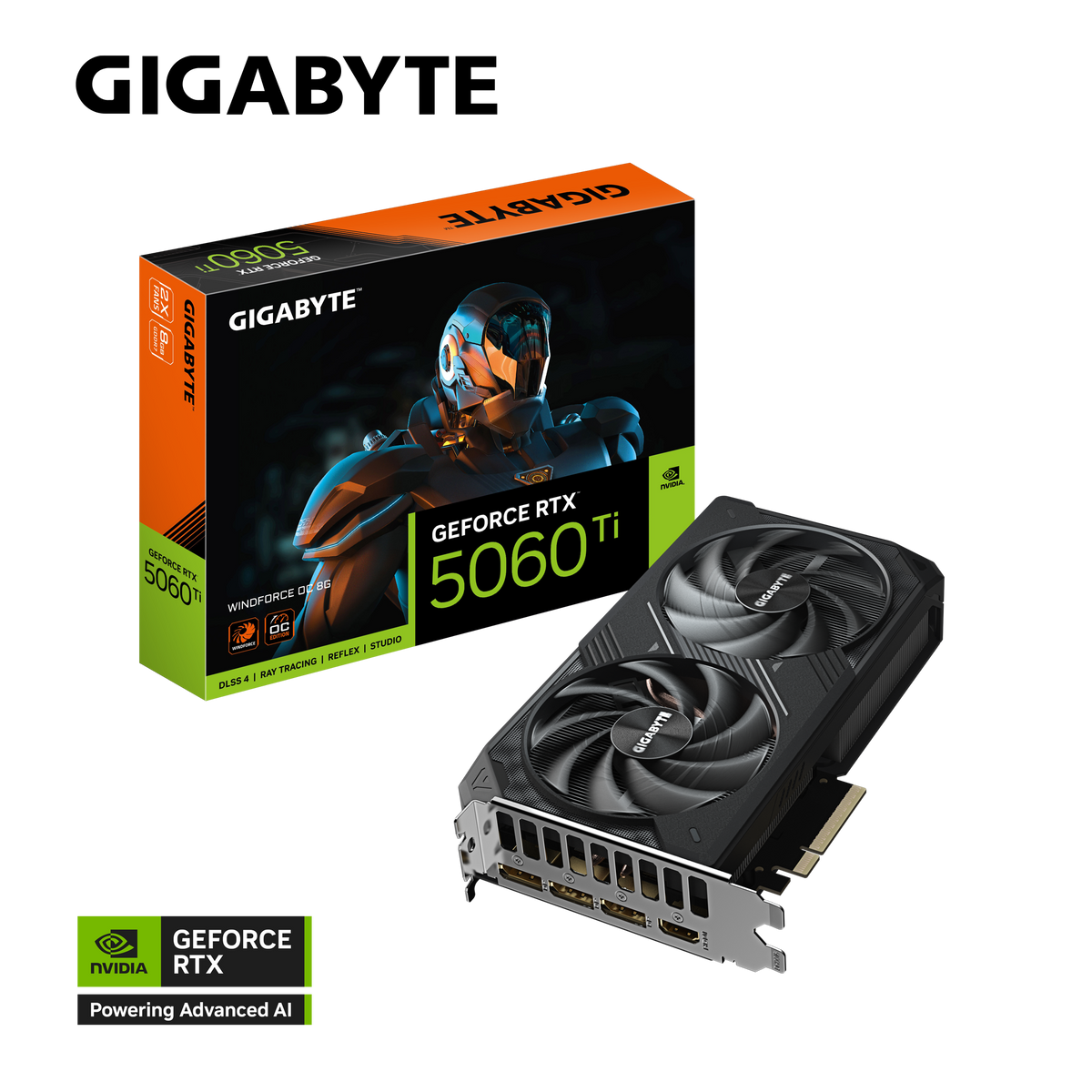

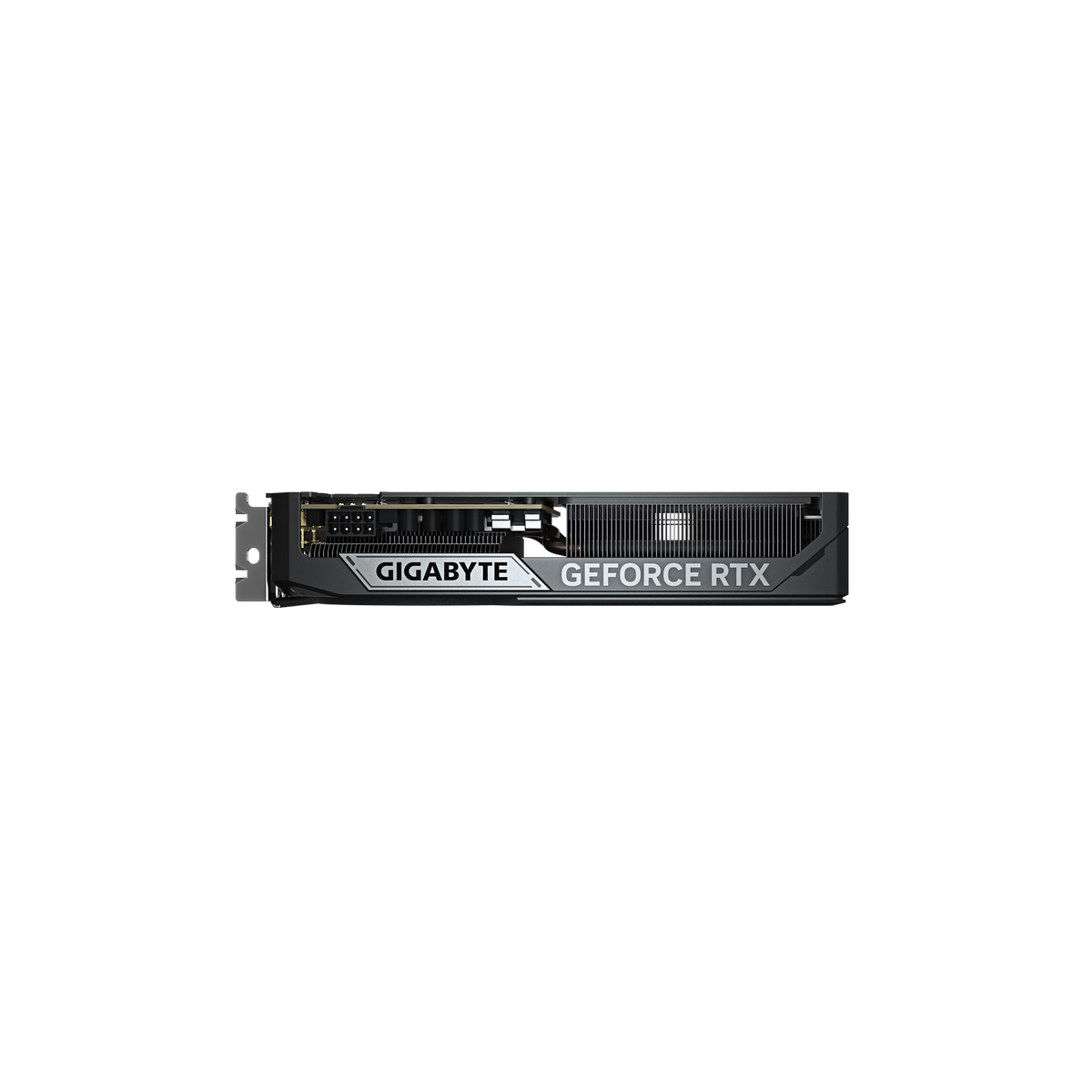

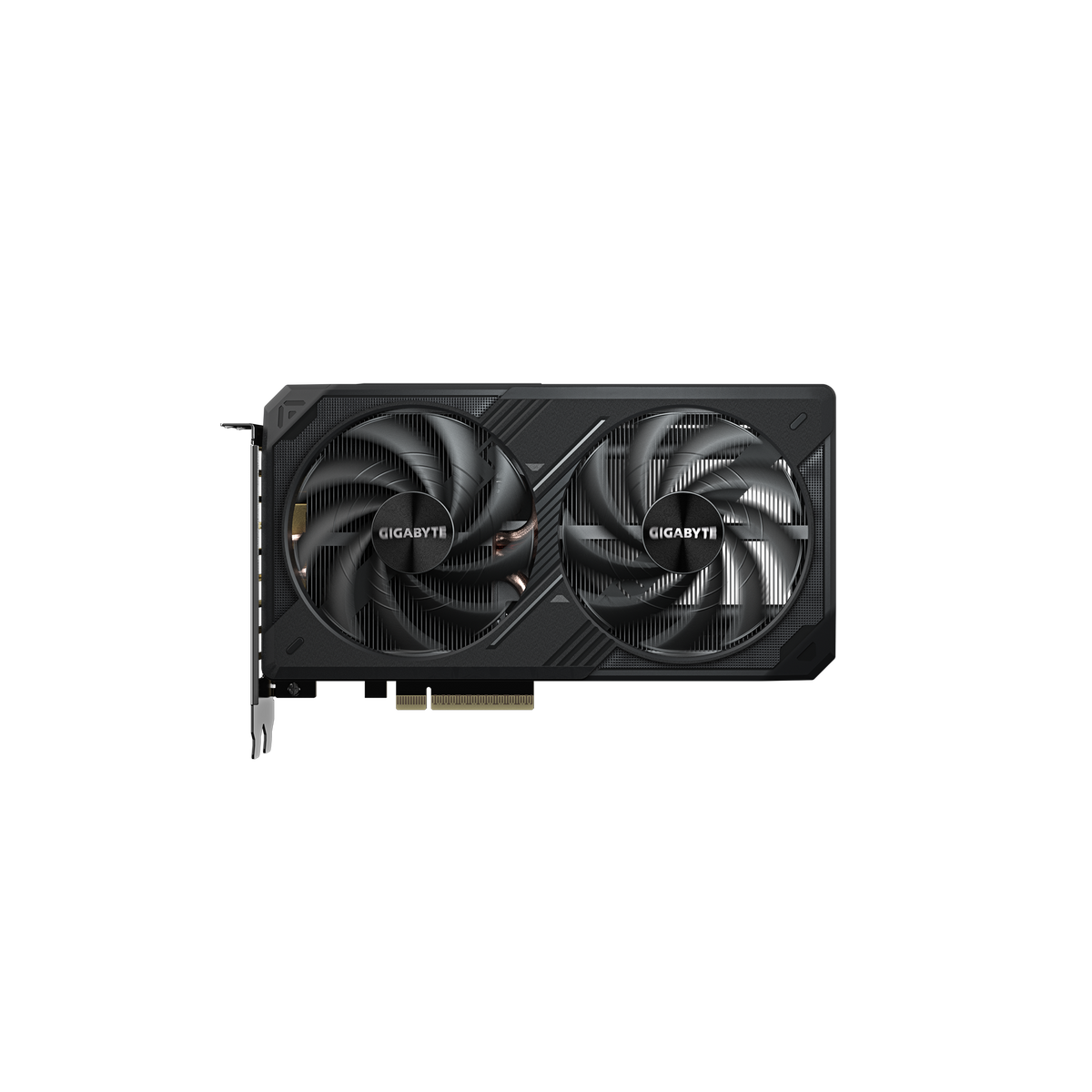

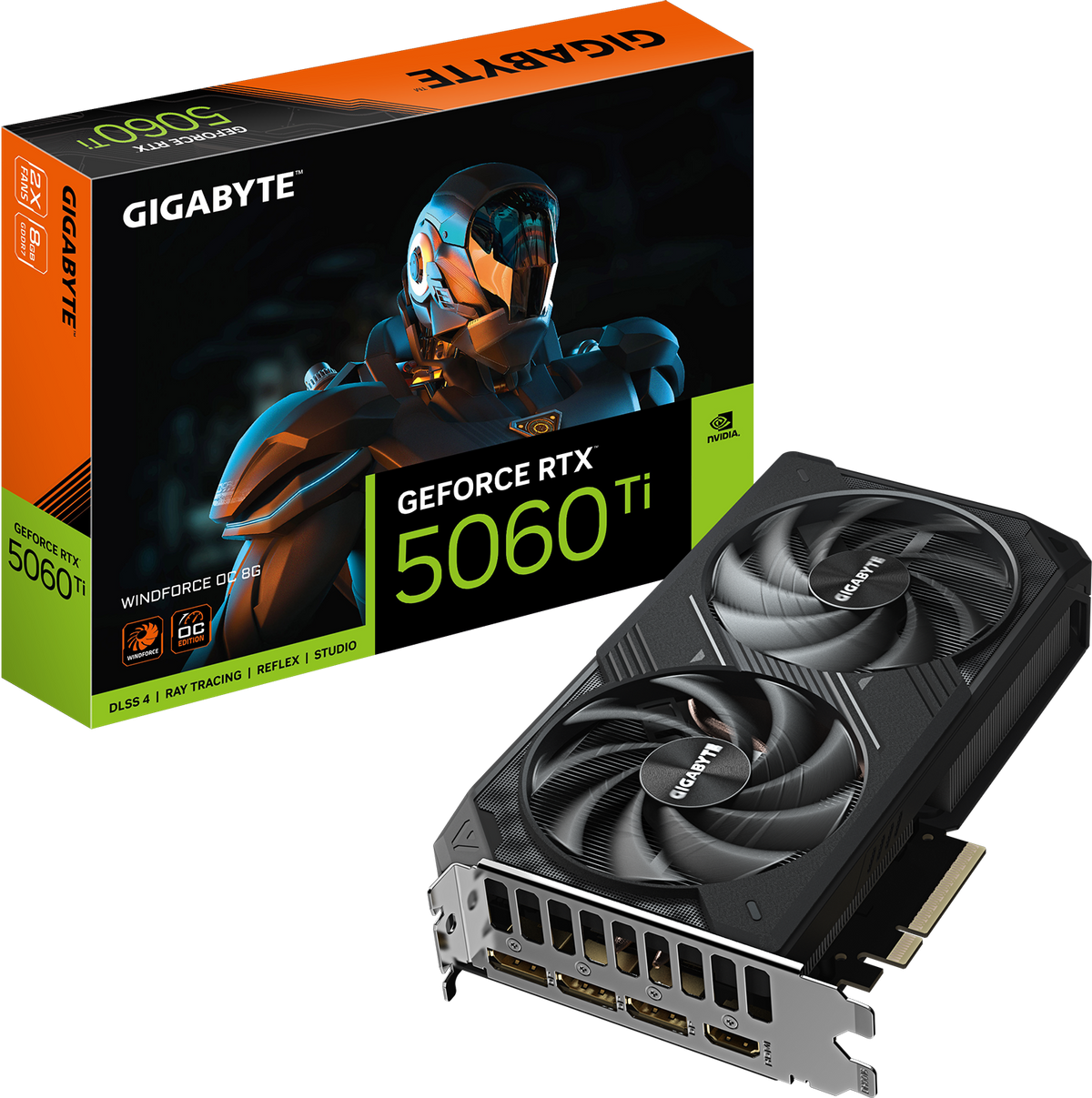

GIGABYTE GeForce RTX™ 5060 Ti WINDFORCE OC 8G (GV-N506TWF2OC-8GD)
The GIGABYTE GeForce RTX™ 5060 Ti WINDFORCE OC 8G delivers next-gen Blackwell architecture gaming performance with an overclocked 2587MHz boost clock, 8GB of ultra-fast GDDR7 memory on a 128-bit bus, and GIGABYTE's proven WINDFORCE dual-fan cooling system. Featuring DLSS 4.5 with Dynamic Multi Frame Generation, 4th-gen Ray Tracing Cores, and 5th-gen Tensor Cores, it punches well above its class for 1080p and 1440p gaming. The compact 208mm dual-slot design fits most mid-tower cases, powered by a single 8-pin connector — making it an ideal upgrade for a wide range of builds.
Key Features
- NVIDIA GeForce RTX™ 5060 Ti — Blackwell architecture, 4608 CUDA Cores
- OC Mode: 2587 MHz Boost Clock (Reference: 2572 MHz) — factory overclocked out of the box
- 8GB GDDR7 — 28 Gbps memory speed, 128-bit memory interface
- PCI-E 5.0 interface — future-ready slot compatibility
- DLSS 4.5 with Dynamic Multi Frame Generation — AI-powered frame generation for maximum FPS
- 4th-Gen RT Cores — built for Mega Geometry path tracing
- 5th-Gen Tensor Cores — Max AI performance with FP4 support
- NVIDIA Reflex 2 with Frame Warp — ultra-low latency competitive gaming
- WINDFORCE Cooling System — Dual Hawk Fans with alternate spinning, graphene nano lubricant, composite copper heat pipes, copper plate direct contact, server-grade thermal conductive gel on VRAM & MOSFETs, screen cooling, 3D Active Fan (semi-passive)
- 3× DisplayPort 2.1b + 1× HDMI 2.1b — supports up to 4 displays, 7680×4320 max resolution
- Single 8-pin power connector — recommended PSU: 650W
- Compact 208mm length — fits most mid-tower cases
- GIGABYTE Control Center (GCC) — real-time clock, voltage, fan, and power tuning
- Ultra Durable components — Lower RDS(on) MOSFETs, Metal Chokes, Lower ESR Solid Capacitors
- Reinforced backplate for structural integrity
- Friendly PCB — smooth solder connectors for safe handling
Specifications
GPU
| GPU | NVIDIA GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Boost Clock (OC Mode) | 2587 MHz |
| Boost Clock (Reference) | 2572 MHz |
Memory
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
Interface
| Card Bus | PCI-E 5.0 x16 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | 4.6 |
Display Output
| DisplayPort | 3× DisplayPort 2.1b |
| HDMI | 1× HDMI 2.1b |
| Max Resolution | 7680 × 4320 (8K) |
| Multi-Display | Up to 4 displays |
Power
| Power Connector | 1× 8-Pin |
| Recommended PSU | 650W |
Cooling
| Cooling System | WINDFORCE — Dual Hawk Fans, Alternate Spinning, 3D Active Fan (semi-passive) |
| Thermal Interface | Server-grade Thermal Conductive Gel (VRAM & MOSFETs), Copper Plate + Composite Copper Heat Pipes |
| Fan Bearing | Graphene Nano Lubricant Sleeve Bearing |
| Screen Cooling | Yes — extended heatsink airflow |
Physical
| Dimensions (L×W×H) | 208 × 120 × 40 mm |
| PCB Form | ATX (Dual Slot) |
General
| Part Number | GV-N506TWF2OC-8GD |
| In the Box | Graphics Card + Quick Guide |
