رمز المنتج: H610M-H-V3-DDR4
نوع المنتج: Motherboards
GIGABYTE H610M H V3 DDR4 Intel H610 LGA1700 Micro-ATX Motherboard | 2x DDR4 64GB | PCIe 4.0 | M.2 | HDMI 2.1 | GbE LAN
AED 279.00
بسرعة! فقط 0 متوفر الآن!
Shipping within 4 to 5 working days in UAE
انيجما تعد واحد من افضل المتاجر الاونلاين فى الامارات
رضاء العميل هو هدفنا لذلك فكل القطع شاملة سنة ضمان محلى

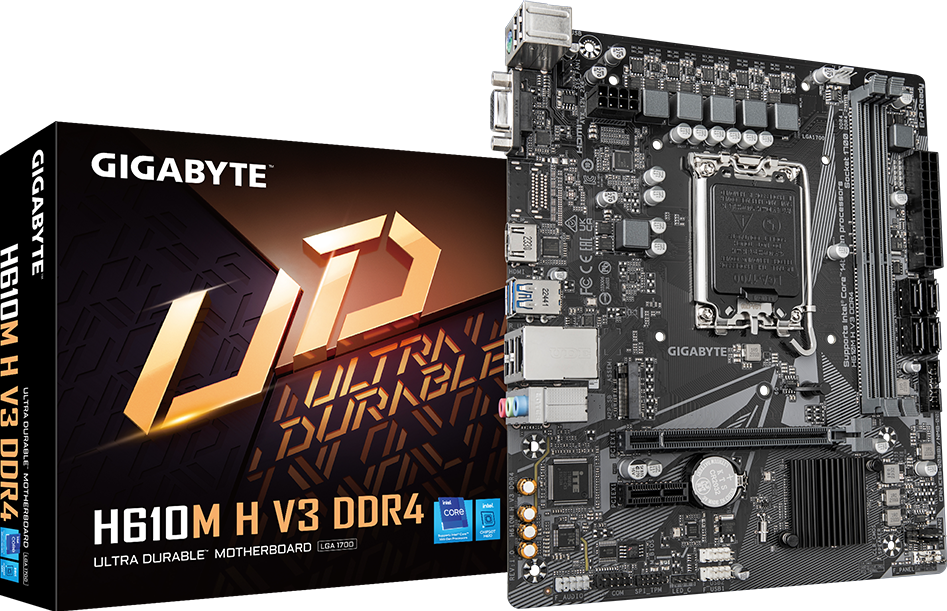

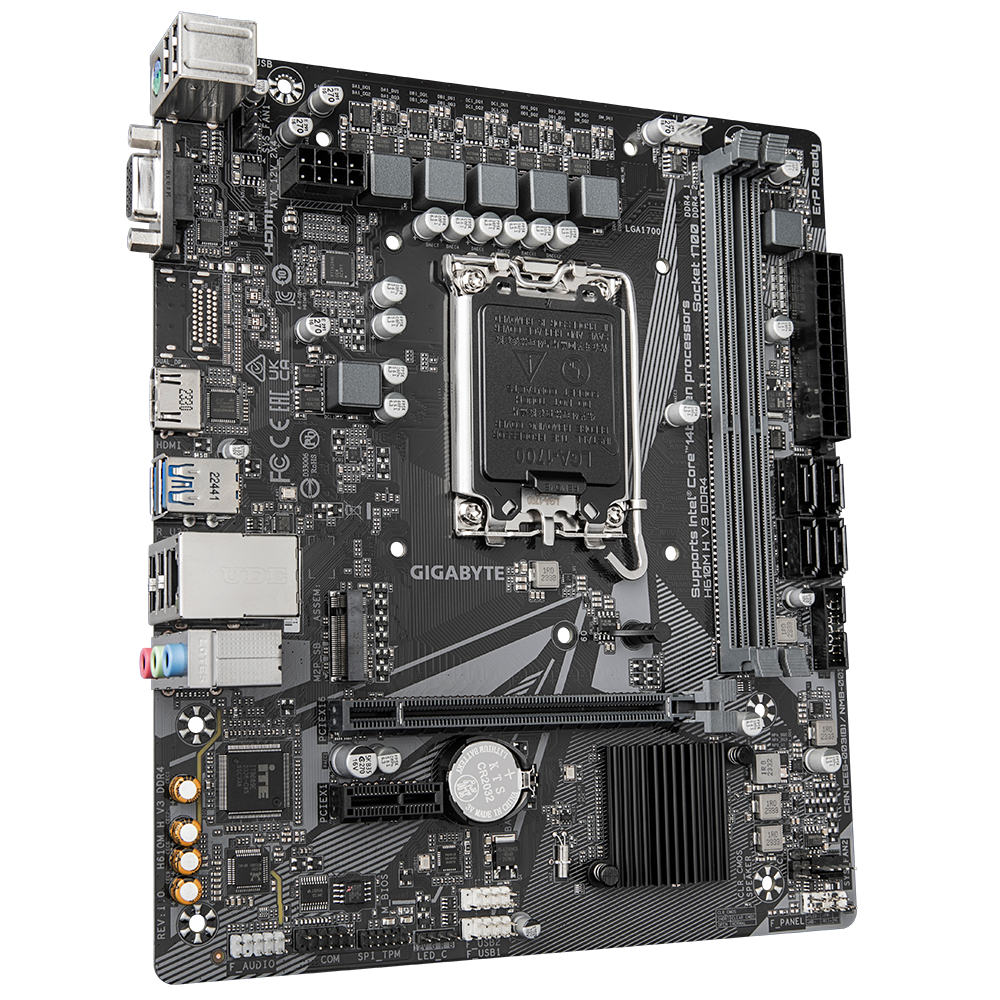

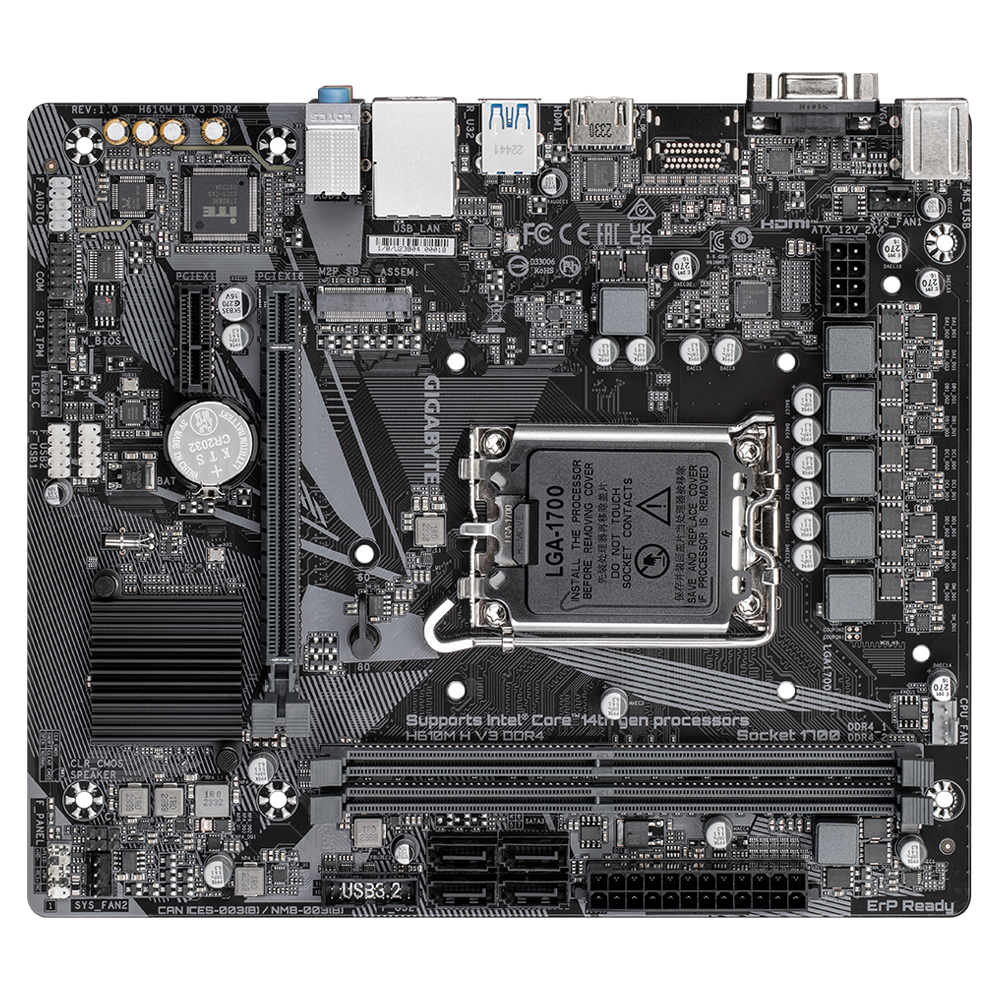

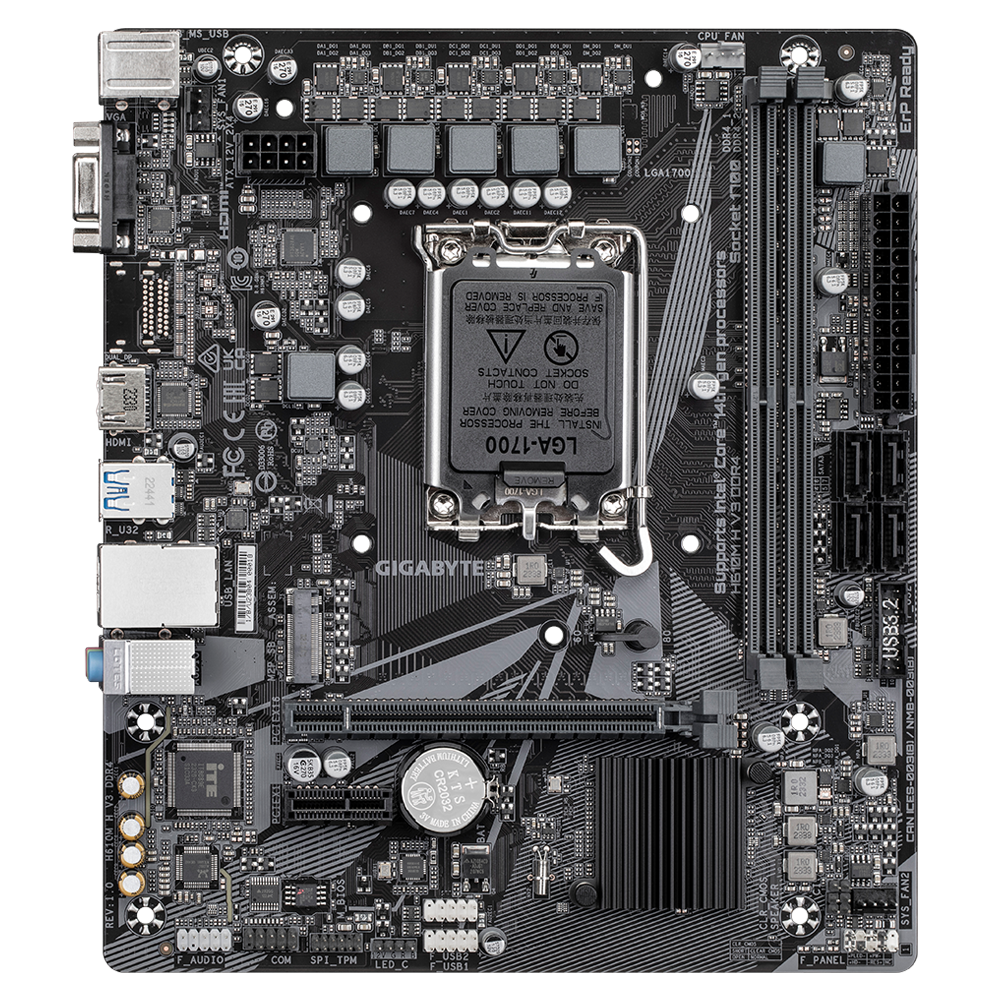

GIGABYTE H610M H V3 DDR4 (Rev. 1.0) — Intel LGA1700 Micro-ATX Motherboard
The GIGABYTE H610M H V3 DDR4 is a reliable entry-level Micro-ATX motherboard for Intel® 14th, 13th, and 12th Generation Core™, Pentium® Gold, and Celeron® processors on LGA1700. It features a 4+1+1 Hybrid Digital VRM with 50A MOSFETs, DDR4 memory support up to 3200 MT/s, PCIe 4.0 x16, 1× PCIe 3.0 M.2 NVMe, 4× SATA 6Gb/s, HDMI 2.1 + D-Sub video out, Smart Fan 6, Anti-Sulfur resistors, and Solid Pin connectors — delivering stable, dependable performance for business and everyday computing builds on a budget.
Key Features
- Intel® LGA1700 — Supports 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron® Processors
- Intel® H610 Express Chipset
- 4+1+1 Hybrid Digital VRM — 50A Low RDS(on) MOSFETs + 8-pin Solid Pin CPU connector
- 2× DDR4 DIMM slots — up to 64GB, DDR4 3200/2933/2666/2400/2133 MT/s, XMP support
- 1× PCIe 4.0 x16 (CPU) — reinforced slot
- 1× PCIe 3.0 x1 (Chipset)
- 1× M.2 (PCIe 3.0 x4, 2280/2260) — NVMe SSD support
- 4× SATA 6Gb/s connectors
- Realtek® GbE LAN (1Gbps) with bandwidth management
- Onboard video: 1× HDMI 2.1 (4K@60Hz) + 1× D-Sub (1920×1200@60Hz)
- Back panel USB: 2× USB 3.2 Gen 1 + 4× USB 2.0
- Internal: 1× USB 3.2 Gen 1 header + 2× USB 2.0 headers
- 3× audio jacks — 8-channel HD audio + High-End Audio Capacitors + Audio Noise Guard
- 1× RGB LED strip header
- Smart Fan 6 — 3× PWM/DC fan headers, Fan Stop, dual curve mode
- Anti-Sulfur Resistors — extended board longevity
- Hybrid Core Optimization — Gaming / Max Performance BIOS profiles
- 1× PS/2 keyboard/mouse port
- Q-Flash BIOS update (no CPU/RAM required)
- Chassis intrusion header + Serial port header + TPM header
- Micro-ATX Form Factor — 22.3 × 19.3cm
- Supports Windows 11 / Windows 10 64-bit
Specifications
Platform
| Socket | Intel® LGA1700 |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® |
| Chipset | Intel® H610 Express |
| Form Factor | Micro-ATX — 223 × 193mm |
Memory
| Slots | 2× DDR4 DIMM (Dual Channel) |
| Max Capacity | 64GB (32GB single DIMM) |
| Speed Support | DDR4 2133 / 2400 / 2666 / 2933 / 3000 / 3200 MT/s |
| Profiles | XMP |
Expansion Slots
| PCIEX16 | 1× PCIe 4.0 x16 (CPU) |
| PCIEX1 | 1× PCIe 3.0 x1 (Chipset) |
Storage
| M.2 | 1× M.2 2280/2260 PCIe 3.0 x4 NVMe (Chipset) |
| SATA | 4× SATA 6Gb/s |
Networking
| LAN | Realtek® 1GbE (1G/100M/10M) |
| Wi-Fi | None |
Back Panel I/O
| Video | 1× HDMI 2.1 (4K@60Hz) + 1× D-Sub (1920×1200@60Hz) |
| USB 3.2 Gen 1 | 2× Type-A |
| USB 2.0 | 4× Type-A |
| LAN | 1× RJ45 GbE |
| Audio | 3× audio jacks (7.1ch HD) |
| Legacy | 1× PS/2 keyboard/mouse |
Internal Connectors
| Power | 24-pin ATX + 8-pin CPU (Solid Pin) |
| Fan Headers | 3× (1× CPU + 2× SYS) |
| Internal USB | 1× USB 3.2 Gen 1 + 2× USB 2.0 headers |
| RGB | 1× RGB LED header |
| Other | 1× TPM header + 1× Serial port + 1× Chassis intrusion + 1× Speaker header + 1× Clear CMOS jumper |
BIOS
| Flash | 128 Mbit AMI UEFI BIOS |
| Features | Q-Flash, Smart Fan 6, Hybrid Core Optimization, EasyTune, APP Center |
General
| Model | H610M H V3 DDR4 |
| Revision | Rev. 1.0 |
| SKU | H610M-H-V3-DDR4 |
| OS Support | Windows 11 / Windows 10 64-bit |
