GIGABYTE Z890 EAGLE WIFI7 PLUS Intel Z890 LGA1851 ATX Motherboard | 4x DDR5 256GB | PCIe 5.0 | USB4 | Intel Wi-Fi 7 | 4x M.2

GIGABYTE Z890 EAGLE WIFI7 PLUS — Intel LGA1851 ATX Motherboard | Core Ultra 200S | Z890 Chipset

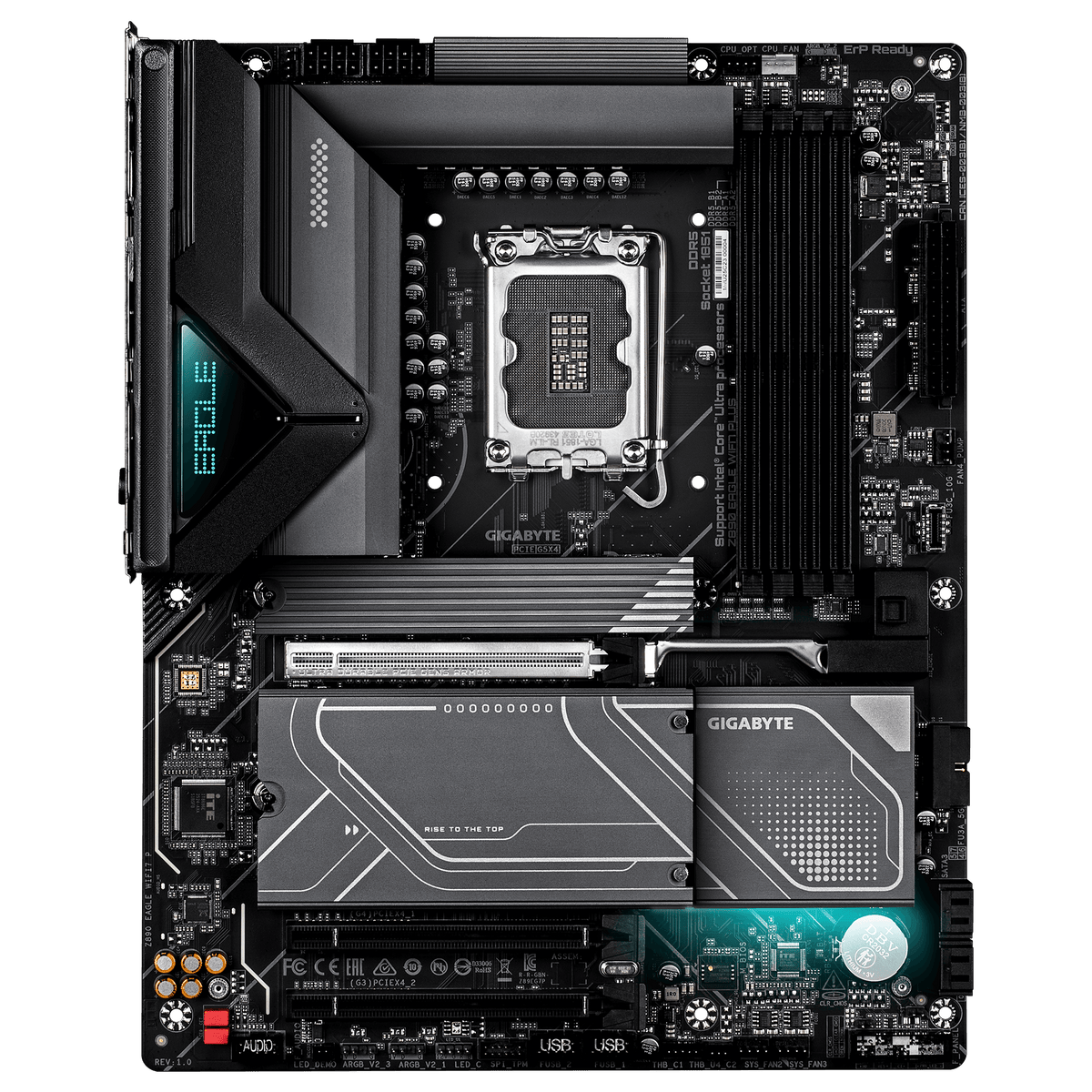

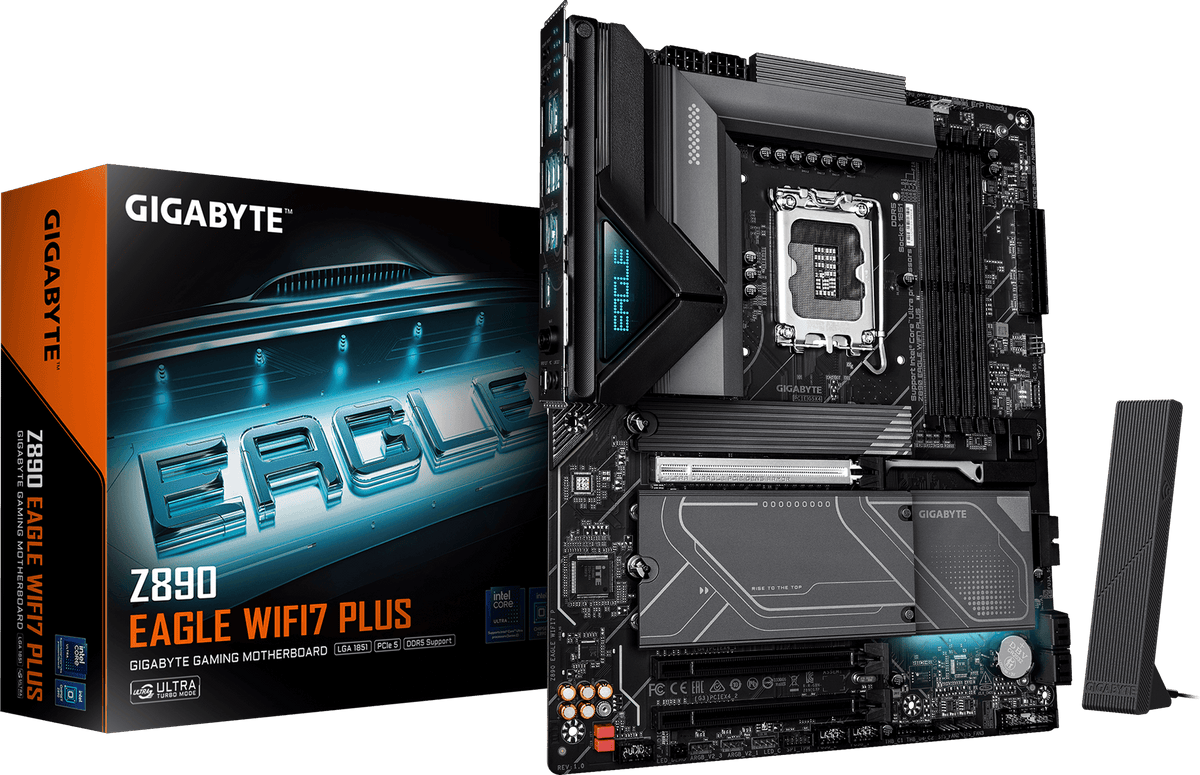

The GIGABYTE Z890 EAGLE WIFI7 PLUS is a premium Intel Z890 ATX motherboard for LGA1851 socket processors (Intel® Core™ Ultra 200S Series). It delivers Ultra Turbo Mode for up to 40% gaming performance boost, a robust 14+1+2 phase digital VRM with 60A DrMOS, four DDR5 DIMM slots supporting up to 256GB at 9466+ MT/s (OC), PCIe 5.0 x16 and four M.2 slots (including PCIe 5.0 x4 on the top slot), Intel® Wi-Fi 7 BE202 with Bluetooth 5.4, a back-panel USB4 Type-C (40Gbps, DP 2.1), WIMA audiophile capacitors, RL-ILM for better CPU thermal, DriverBIOS, UC BIOS 2.0 with 512 Mbit flash, and a full suite of GIGABYTE signature features including PCIe EZ-Latch Plus, M.2 EZ-Latch Click/Plus, WIFI EZ-Plug, Rear EZ-Buttons, ARGB Fusion 2.0, and Smart Fan 6.

Key Features

• Intel® LGA1851 Socket — Supports Intel® Core™ Ultra 200S Series Processors
• Intel® Z890 Express Chipset
• Ultra Turbo Mode — up to 40% gaming FPS boost (3 levels: Intel 200S Boost / Turbo Mode / Extreme Mode)
• D5 Bionic Corsa — AORUS AI SNATCH one-click CPU + DDR5 OC
• HyperTune BIOS — AI-driven MRC optimization (95%+ tuning accuracy)
• 14+1+2 Digital VRM with DrMOS 60A (7+7 phases parallel)

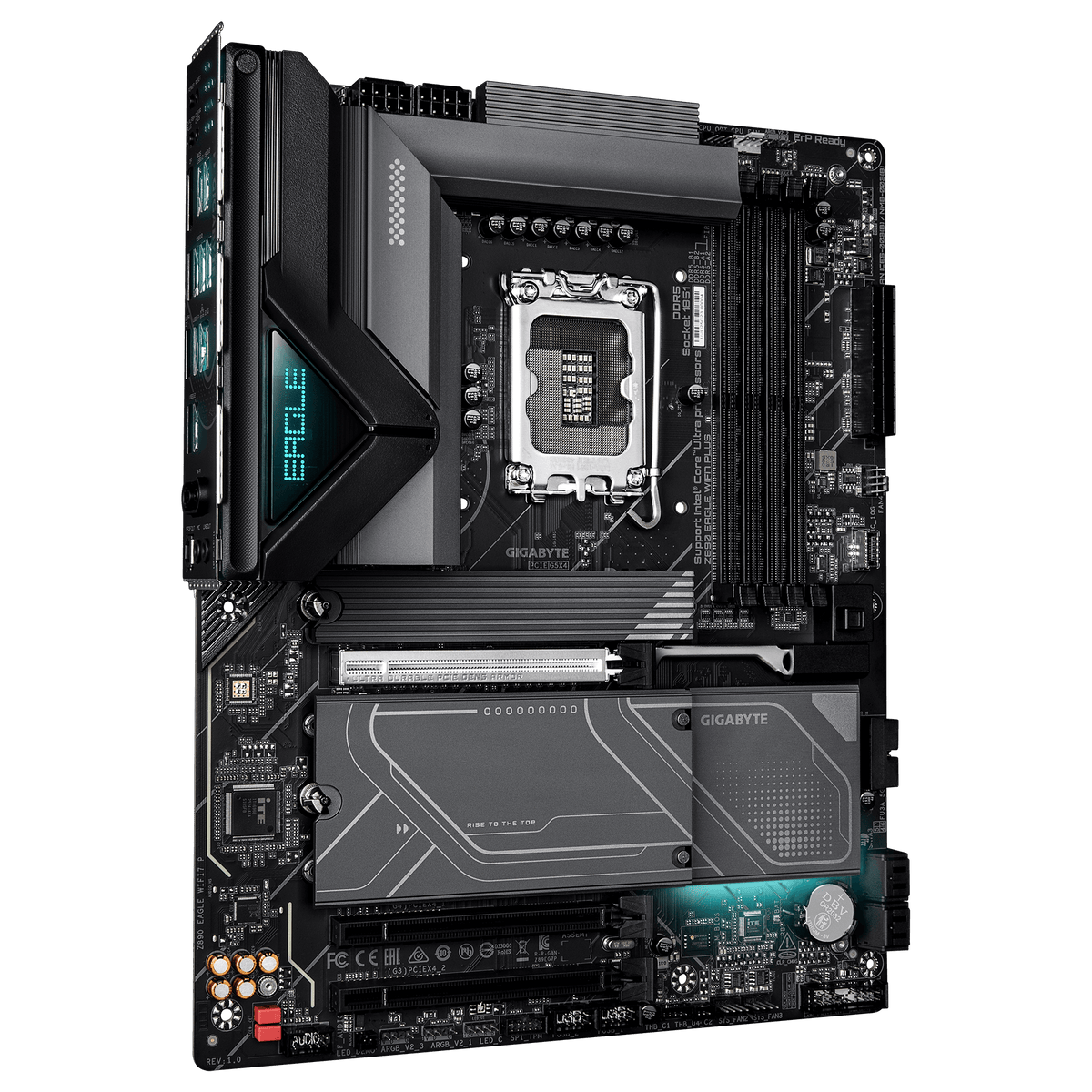

• VRM Thermal Armor Advanced — 4× larger surface area, 5 W/mK thermal pad
• RL-ILM (Reduced Load-ILM) — reduces CPU temps up to 4°C, prevents IHS bending
• 4× DDR5 DIMM slots — up to 256GB, DDR5 9466+(OC), CUDIMM support, XMP
• 1× PCIe 5.0 x16 (CPU) — PCIe EZ-Latch Plus UD Slot
• 2× PCIe 4.0 x4 slots (Chipset)
• 4× M.2 slots — M2A_CPU (PCIe 5.0 x4, up to 25110) + M2B_CPU (PCIe 4.0 x4) + M2Q_SB (PCIe 4.0 x4) + M2M_SB (PCIe 4.0 x4 / SATA)
• M.2 Thermal Guard Ext. (3× slots) + M.2 Thermal Guard (1× slot)
• M.2 EZ-Latch Click + M.2 EZ-Latch Plus — fully screwless M.2 installation
• 4× SATA 6Gb/s | RAID 0/1/5/10 (NVMe + SATA)
• Intel® Wi-Fi 7 BE202 — 802.11be, 2.4/5/6 GHz, 160MHz, 4K-QAM, MLO | Bluetooth 5.4
• WIFI EZ-Plug — integrated antenna adapter
• Realtek® 2.5GbE LAN
• Realtek® ALC1220 + WIMA Audiophile capacitors — 7.1ch HD Audio + S/PDIF optical out
• UD Base Plate — full PCB coverage metal backplate for structural rigidity
• RGB Fusion 2.0 — 3× ARGB Gen2 + 1× RGB LED headers
• Smart Fan 6 — 6× PWM/DC fan headers, dual curve mode, fan stop
• Rear EZ-Button panel — Power, Reset, Q-Flash Plus, Clear CMOS all on rear I/O
• DriverBIOS — 512 Mbit BIOS with embedded Wi-Fi driver, no download needed post-install
• UC BIOS 2.0 — BIOS Quick Search, Smart 80 Port thermal monitor, Multi-Theme, AIO Fan Control
• 2× Thunderbolt 5 add-in card headers (for GIGABYTE TB5 add-in card)
• USB4 40Gbps Type-C (DP 2.1) on back panel + front USB-C 10Gbps internal header
• AI-Driven PCB — AI-ViaFusion, AI-Trace, AI-Layer technologies
• Supports Windows 11 64-bit

Specifications

Platform

Socket	Intel® LGA1851
CPU Support	Intel® Core™ Ultra 200S Series Processors
Chipset	Intel® Z890 Express
Form Factor	ATX — 305 × 244mm

Memory

Slots	4× DDR5 DIMM (Dual Channel)
Max Capacity	256GB
Speed Support	DDR5 up to 9466+ MT/s (OC)
Module Support	Non-ECC Un-buffered, CUDIMM, XMP

Expansion Slots

PCIEX16	1× PCIe 5.0 x16 (CPU) — EZ-Latch Plus UD Slot
PCIEX4_1/2	2× PCIe 4.0 x4 (Chipset)

Storage

M2A_CPU	M.2 25110/2280 PCIe 5.0 x4 (CPU) — Thermal Guard Ext.
M2B_CPU	M.2 22110/2280 PCIe 4.0 x4 (CPU) — Thermal Guard Ext.
M2Q_SB	M.2 22110/2280 PCIe 4.0 x4 (Chipset) — Thermal Guard Ext.
M2M_SB	M.2 22110/2280 PCIe 4.0 x4 / SATA (Chipset) — Thermal Guard
SATA	4× SATA 6Gb/s | RAID 0/1/5/10

Networking

LAN	Realtek® 2.5GbE
Wi-Fi	Intel® Wi-Fi 7 BE202 — 802.11be, 2.4/5/6GHz, 160MHz
Bluetooth	Bluetooth 5.4 (2T2R antenna)

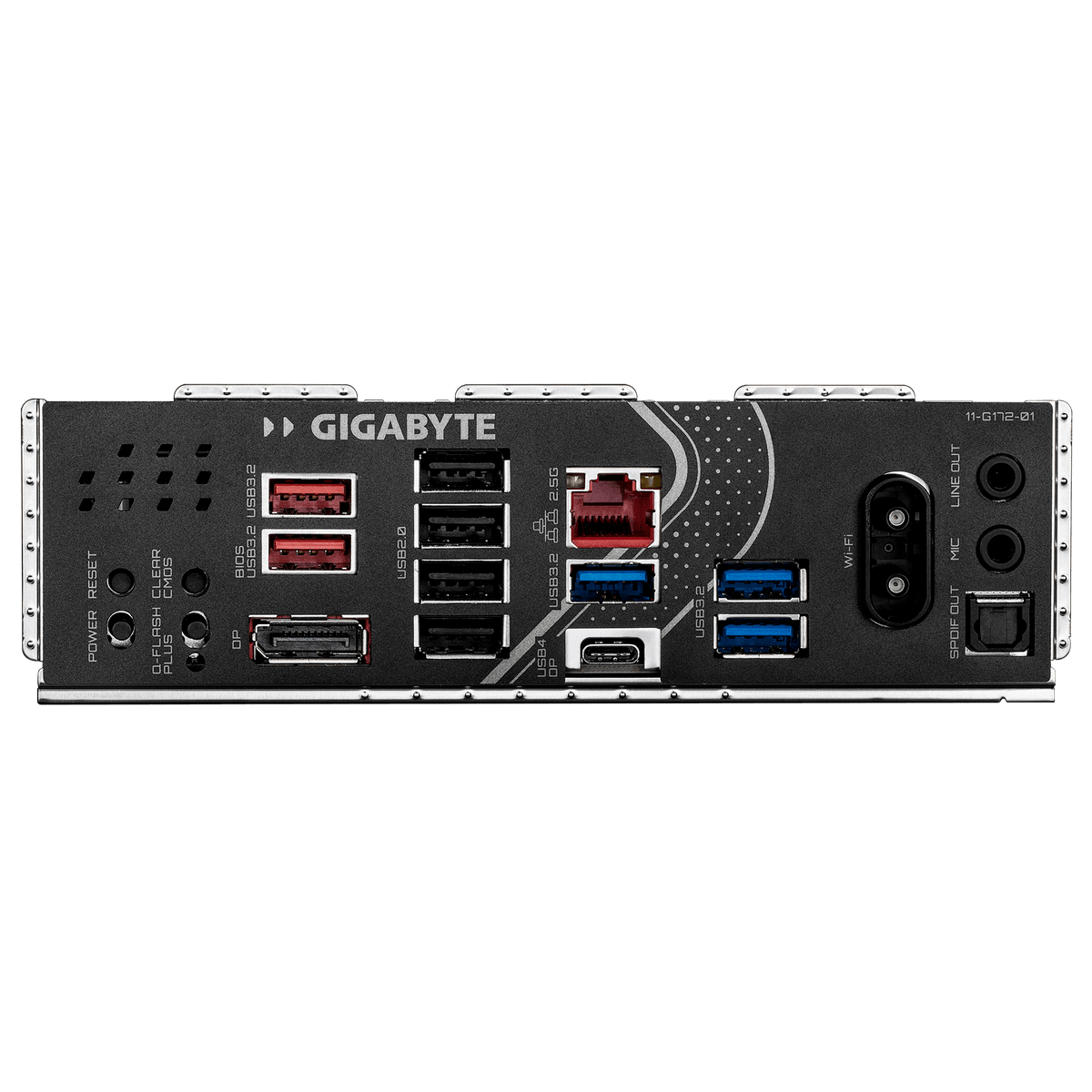

Back Panel I/O

USB4 Type-C	1× USB4 40Gbps (DP 2.1 Alt Mode)
DisplayPort	1× DisplayPort 2.1 (4K@144Hz)
USB Type-A (red)	2× USB 3.2 Gen 2 (10Gbps)
USB 3.2 Gen 1	3× Type-A
USB 2.0	4× Type-A
LAN	1× RJ45 2.5GbE
Audio	2× audio jacks + 1× optical S/PDIF out
Antenna	2× Wi-Fi antenna connectors (2T2R)
Buttons	Power + Reset + Q-Flash Plus + Clear CMOS

Internal Connectors

Power	24-pin ATX + 2× 8-pin CPU (UD Solid Pin)
Fan Headers	6× (CPU + CPU/pump + 3× SYS + SYS/pump)
Internal USB	1× USB-C 3.2 Gen 2 + 1× USB 3.2 Gen 1 + 2× USB 2.0 headers
RGB	3× ARGB Gen2 + 1× RGB headers
Thunderbolt	2× TB5 add-in card connectors
TPM	1× TPM header (GC-TPM2.0 SPI V2)

Audio

Codec	Realtek® ALC1220
Channels	2/4/5.1/7.1-channel + S/PDIF optical out
Capacitors	WIMA + Audiophile Grade capacitors

BIOS

Flash	512 Mbit AMI UEFI BIOS (DriverBIOS)
Features	UC BIOS 2.0, Q-Flash Plus, Q-Flash Auto Scan, Ultra Turbo Mode, AORUS AI SNATCH, HyperTune, Smart Fan 6, AIO Fan Control, AI PerfDrive, Smart 80 Port

General

Model	Z890 EAGLE WIFI7 PLUS
SKU	Z890-EAGLE-WIFI7-P
OS Support	Windows 11 64-bit
Software	GIGABYTE Control Center (GCC), RGB Fusion 2.0, Smart Backup, Norton Internet Security (OEM)
