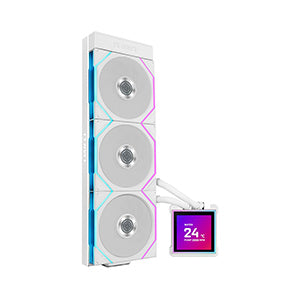

Lian Li HydroShift II LCD-S 360TL ARGB Liquid CPU Cooler White

Lian Li Hydroshift II-S LCD 360TL ARGB Liquid CPU Cooler – 360mm AIO – 3.4″ IPS LCD Square Screen – Daisy-Chain – Low-Noise – Intel LGA 1851/1700, AMD AM5/AM4-3X TL120 ARGB Fan -White -G89.GHS2LCDS36TW.00

Compact 360mm radiator (400 × 122 × 24 mm) with a slimmer profile for broader case compatibility and easier installation.
3.4″ IPS LCD display (480×480, 500 nits, 60 Hz) delivering sharp visuals, smooth animations, and real-time system monitoring.
Magnetic hot-swap LCD mount for easy installation/removal without powering off the system.
Upgraded high-performance pump, reaching up to 3200 RPM with reduced noise and enhanced cooling efficiency.
Side-mounted tubing with fully concealed wiring for an ultra-clean, cable-free aesthetic along the radiator edge.
Three control modes via L-Connect 3: Offline, Wireless, USB Streaming (with media uploads and customizable widgets).
Supports UNI FAN TL / CL Wireless ecosystems and integrates seamlessly with wireless lighting sync.
USB power and data lines embedded inside the tubing, eliminating visible front-side cables for a refined minimalist build.

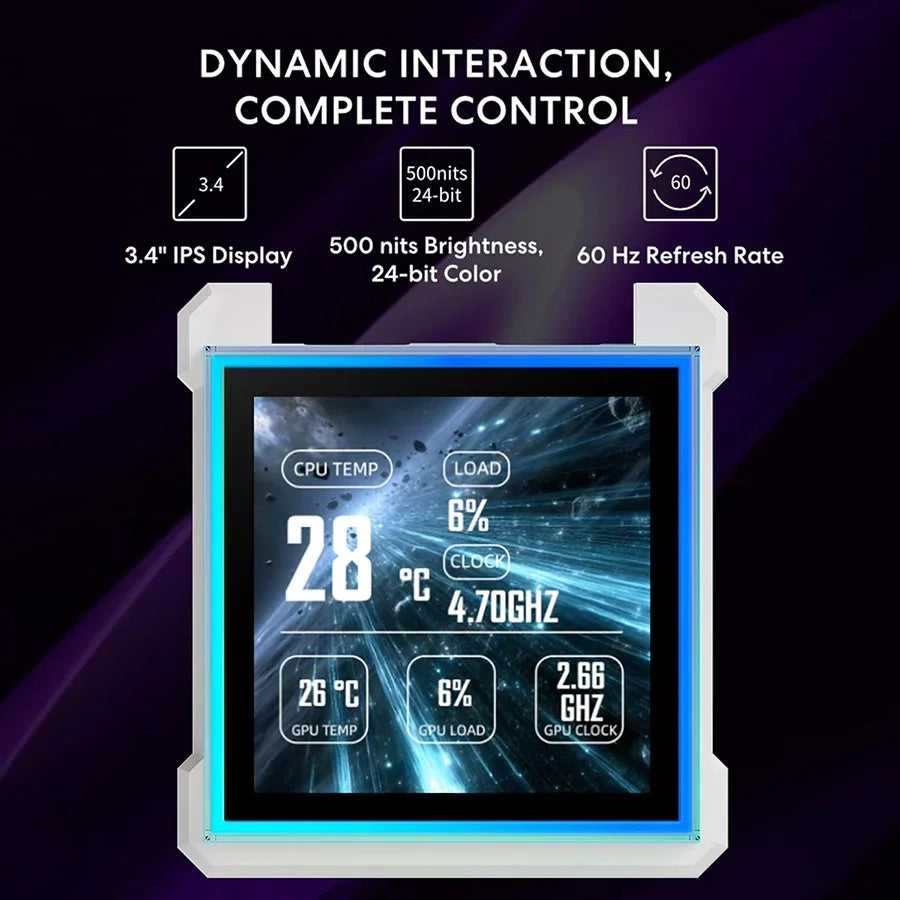

DYNAMIC INTERACTION, COMPLETE CONTROL
Enjoy a vivid, high-definition visual experience with a 480 × 480 resolution display boasting 500 nits of peak brightness. Even under bright lighting, every animation and metric remains crystal clear. The 60 Hz refresh rate ensures smooth, tear-free visuals for a fluid real-time monitoring experience.

MAGNETIC HOT-SWAP DISPLAY
Featuring magnetically aligned pogo-pin connectors, the screen securely snaps into place without powering down, allowing for fast installation or removal. Precise magnetic alignment ensures a safe, reliable connection, letting users conveniently attach the display after system assembly to avoid accidental damage.

PUMP PERFORMANCE UPGRADED
Experience the next level of cooling with our enhanced pump, now reaching speeds of up to 3200 RPM. the enhanced pump delivers more power with less noise. A hidden frame and skirted cover ensure a clean, streamlined look.

The HydroShift II LCD-S performs similarly to the first-generation HydroShift,
while the HydroShift II Square shows a clear improvement in thermal efficiency.
With a more compact design and finer radiator fins, HydroShift II delivers lower noise and better cooling performance, achieving superior compatibility without compromising power.

MINIMALIST AESTHETICS, MAXIMUM FREEDOM
Innovative side-mounted tubing runs cleanly along the radiator edge, reducing visual clutter. Cables are discreetly integrated within the sleeved tubing, delivering a seamless, cable-free look for an ultra-clean, minimalist build.

USB power and data cables are integrated directly into the tubing, removing visible wires from the front and delivering a cleaner, more refined interior.
Pre-installed triple tube clips keep the tubing secured along the radiator edge, ensuring clean routing and a tidier case layout.

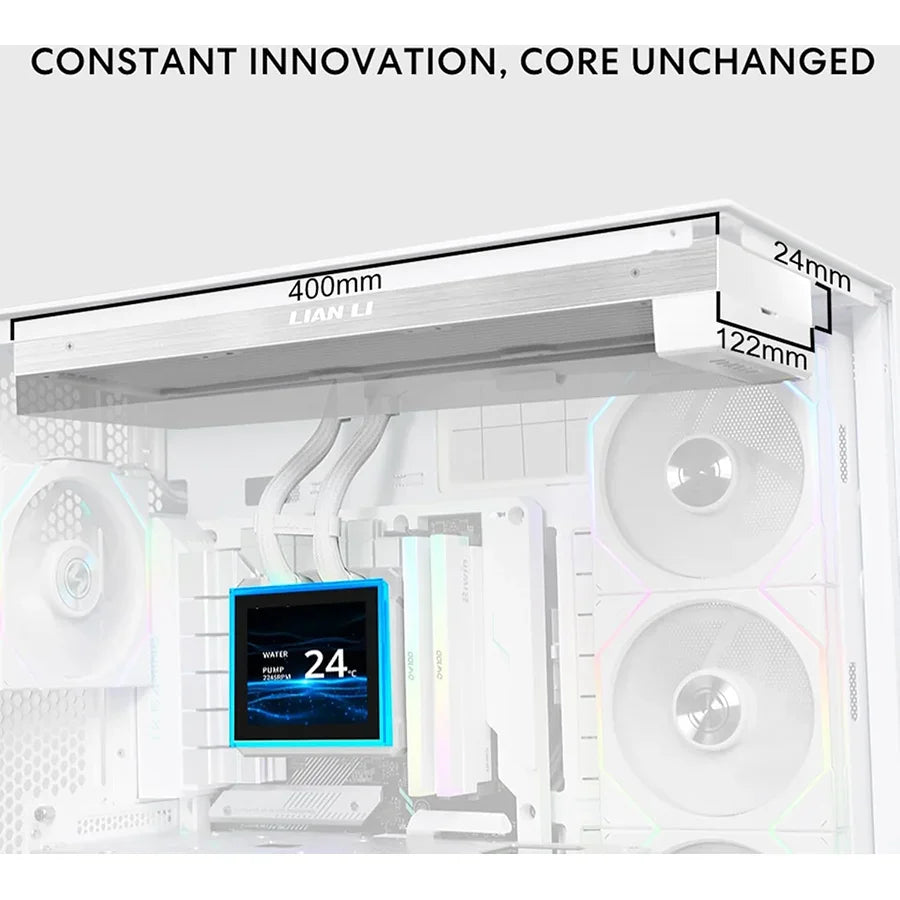

CONSTANT INNOVATION, CORE UNCHANGED
The compact radiator has been refined to 400 × 122 × 24 mm, reducing thickness, length, and width while maintaining 90% compatibility with mainstream cases.
Its smaller footprint eases installation across various builds, delivering efficient heat dissipation in a sleek, space-saving design.

REDESIGNED MOUNTING BRACKET
The CPU liquid cooler features a redesigned mounting system for easier, faster, and more secure installation, offering better stability and user-friendly setup.

BROAD COMPATIBILITY, SEAMLESS SUPPORT
The HydroShift II LCD-S AIO offers easy installation and broad CPU socket compatibility, featuring an upgraded AM4/AM5 bracket that ensures even pressure and improved thermal performance.

INTUITIVE CONTROL, COMPLETE CUSTOMIZATION
The L-Connect 3 software offers fast theme switching and layout customization with integrated hardware monitoring.
Easily capture screenshots or record videos using built-in editing tools, and enhance your display with 3D effects, sensor-based visuals, overlays, and watermarks. All designed for a personalized, immersive experience.

THREE MODES, MULTIPLE EXPERIENCES
1- Offline Mode (No USB Connection)
Operates with preset themes to monitor coolant temperature and pump speed. No cables, no system resources required.

2- Wireless Mode
(L-Wireless Controller Connection, no USB connection)
Connect through the L-Wireless 2.4G Controller to customize screen themes, parameters, and lighting effects via L-Connect. Wireless Mode also allows for lighting synchronization with other wireless products, including CL Wireless and TL Wireless, while keeping your motherboard's USB 9P ports free for other devices. Enjoy a cleaner setup with reduced cable clutter and minimal system load.
Advanced Wireless Mode:
Combines Streaming and Wireless modes to deliver the best performance and flexibility. With both the L-Wireless Controller and a USB connection to the motherboard, lighting, pump, and fan controls remain wireless, while the USB link enables full LCD customization.

3- Streaming Mode (USB Connection)
Connect via USB to gain full control through L-Connect 3. Easily switch screen themes, upload custom images, or design personalized layouts, turning the display into a dynamic secondary screen that enhances both functionality and visual appeal.

Users can unplug the USB 2.0 cable when switching to wireless or cable-free mode, depending on their setup preferences.

PRECISION FIT, EFFORTLESS INSTALLATION
The removable sliding tube mount enables precise tubing alignment with 140 mm fan brackets.
This optimized layout enhances cable management and thermal organization, delivering a clean, minimalist aesthetic.

FLEXIBLE LAYOUT, UNLIMITED COMPATIBILITY
For hidden-tube installations, the top mounting area of the case should measure at least 280 × 400 mm.
You can easily adjust or remove the tube bracket (recommended clearance > 55 mm) to fit a wide range of case configurations across different usage scenarios.

MOUNTING
BRACKET COVER
Designed to conceal the bracket and mounting screws, this cover refines the coolers appearance completing its clean, minimalist aesthetic.

CABLE ORGANIZER
Used to neatly align and secure extended tubing, maintaining a clean and balanced exterior appearance.

INDUSTRIAL-GRADE
CORRUGATED TUBING
Designed with a unique corrugated structure, the tubing offers superior flexibility and kink resistance for hassle-free routing even in tight layouts.
Its high-tensile durability ensures long-term performance and a consistent flow rate between the radiator and pump.

Model GHS2LCDS36TW
PUMP SPEED 1600-3200 RPM ±10%
PUMP NOISE -28dBA
WATER BLOCK DIMENSIONS 91 x 99 x 62mm
LCD REFRESH RATE 60Hz
LCD PANEL 3.4" IPS
LCD RESOLUTION 480 x 480
BRIGHTNESS 500nit
RADIATOR SIZE 400 x 122 x 24mm
RADIATOR MATERIAL Aluminum
TUBING LENGTH 450/470mm
Fan Size 124 x 120 x 28mm
FAN SPEED 0-200-2600RPM
FAN PRESSURE 3.97H2O
AIRFLOW 90.1CFM
NOISE LEVEL 33dBA
BEARING TYPE Fluid Dynamic Bearing (FDB)
CPU SOCKET SUPPORT intel LGA1700 LGA1851 / AMD AM4 AM5
