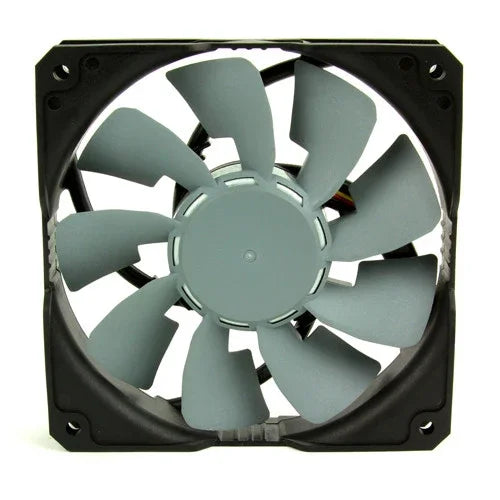

Scythe Grand Flex 120mmx25mm (PWM 4Pin) Single Fan

Scythe Grand Flex 120mmx25mm (PWM 4Pin) Single Fan

Sealed Precision FDB

This newly developed bearing is a closed-up (sealed) system, in which the rotor shaft smoothly runs on a film of oil. Compared to conventional sleeve bearings, sealed precision FDB works more quietly and results in less wear and tear of the bearing. The applied lubricant oil can take temperatures up to 250°C.

Fan Blade Design

The new fan blade design reduces turbulence and guides the airflow to the desired area. This effect is further enhanced by the angled shape of the blades towards the hub.

Vibration-Free Mounting

Enclosed with the Grand Flex are insulation rubbers to prevent vibration to the PC case, contributing to a more quiet operation.

4-Pin Molex Adapter

The 500 mm length, 3-pin cable allows a direct connection to the motherboard, or alternatively, to a fan controller unit. If direct connection to the power supply unit is preferred, the included 3-pin to 4-pin Molex adapter is included.

• Speed: 600 ± 250 rpm ~ 2,400 rpm ± 10%
• Bearing Type: Sealed Precision Fluid Bearing
• Connector: 4Pin Fan Power Connector (3Pin to 4Pin Molex adapter included)
• MTBF: 120,000 Hours
• Noise: 13.5 ~ 39.5 dBA
• Airflow: 24.2 ~ 96.8 CFM / 41.1 ~ 164.4 m³/h
• Static Pressure: 0.28 ~ 4.55 mmH²O / 2.75 ~ 44.62 Pa
• Rated Voltage: 12 V
• Rated Current: 0.45 A
• Power Input: 5.4 W
• Dimensions: 4.72 x 4.72 x 0.98 inch / 120.0 x 120.0 x 25.0 mm
